2L-BX : Tool Box Droid

CURRENT PHASE : Fabrication

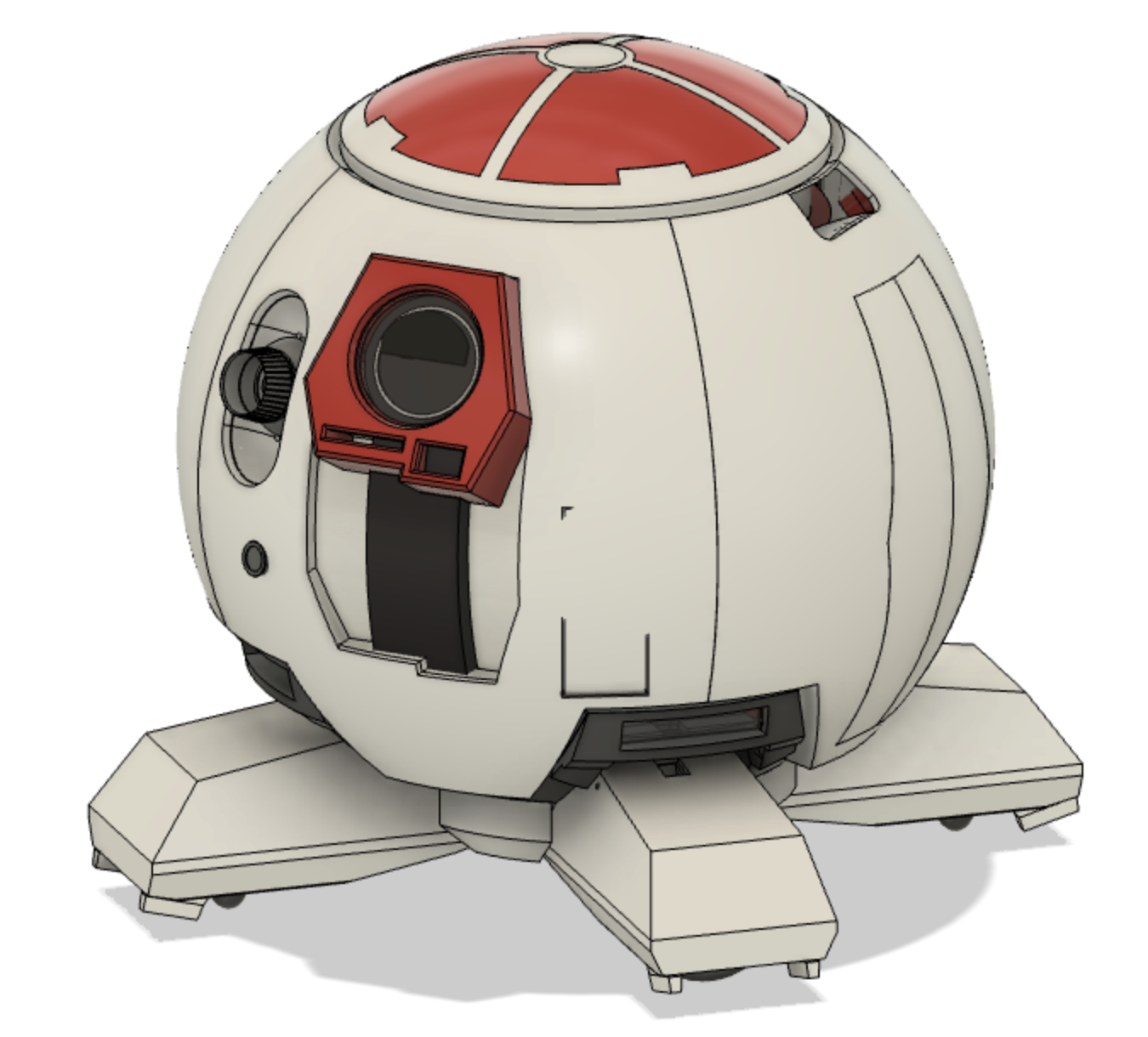

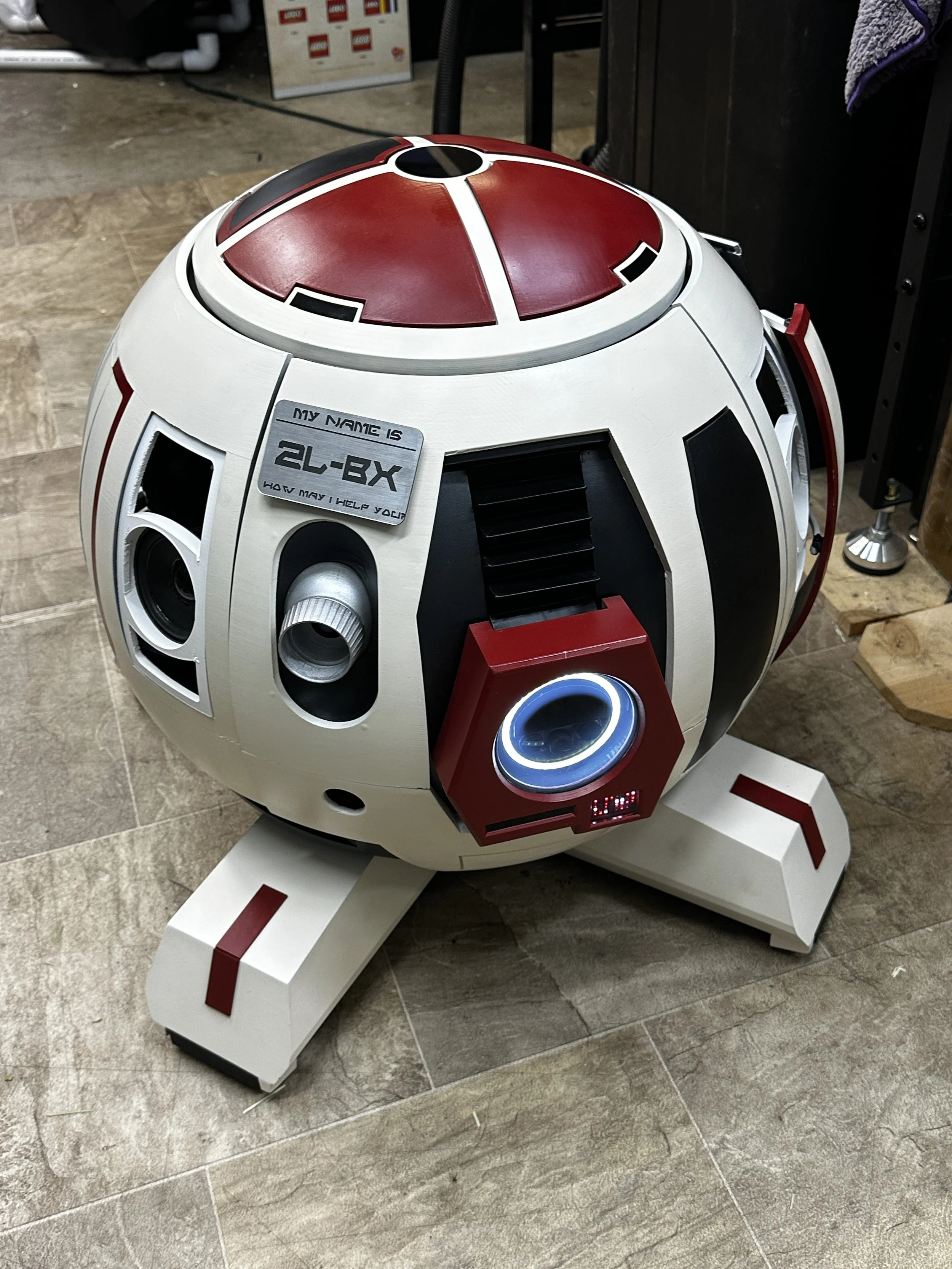

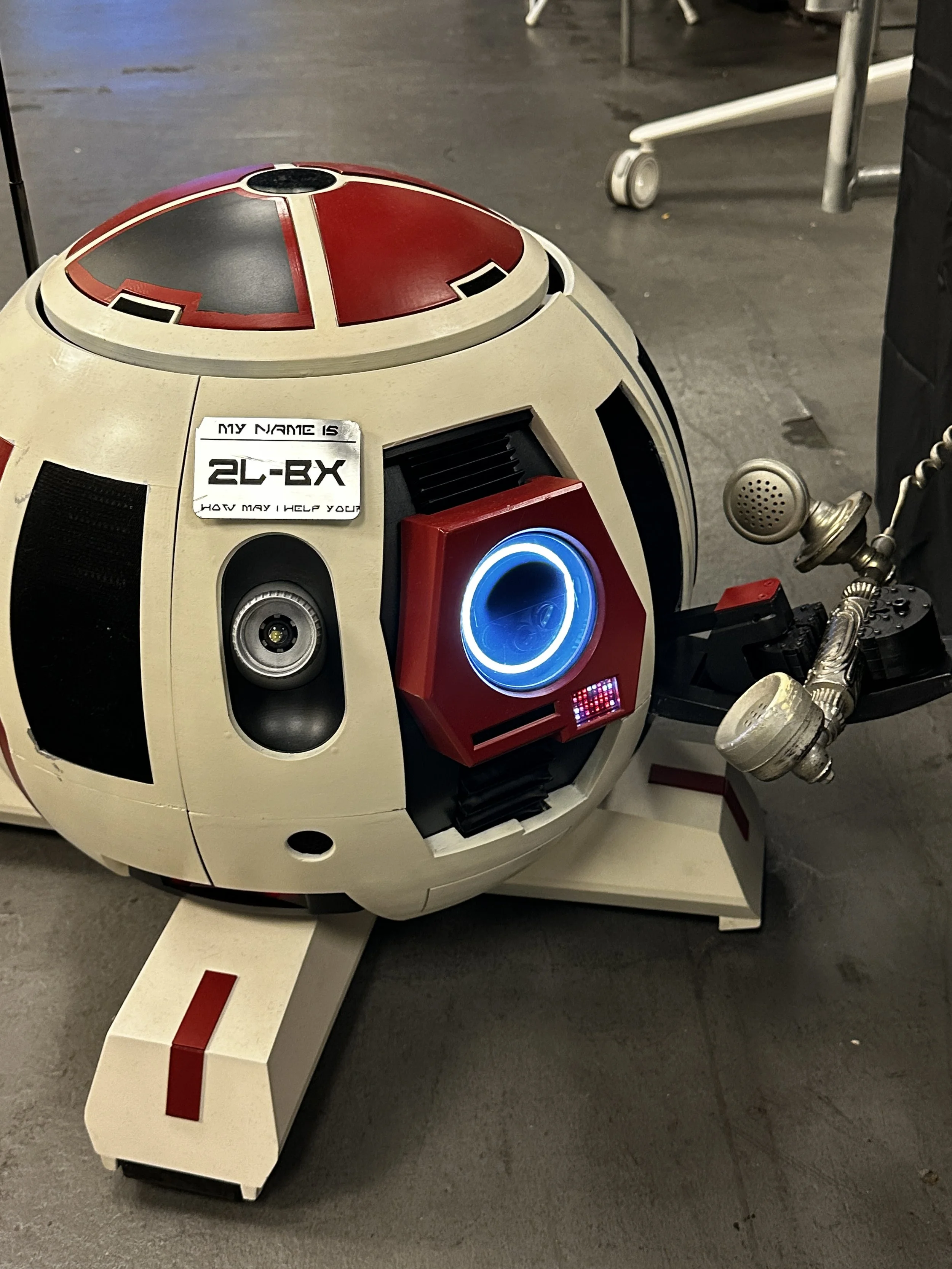

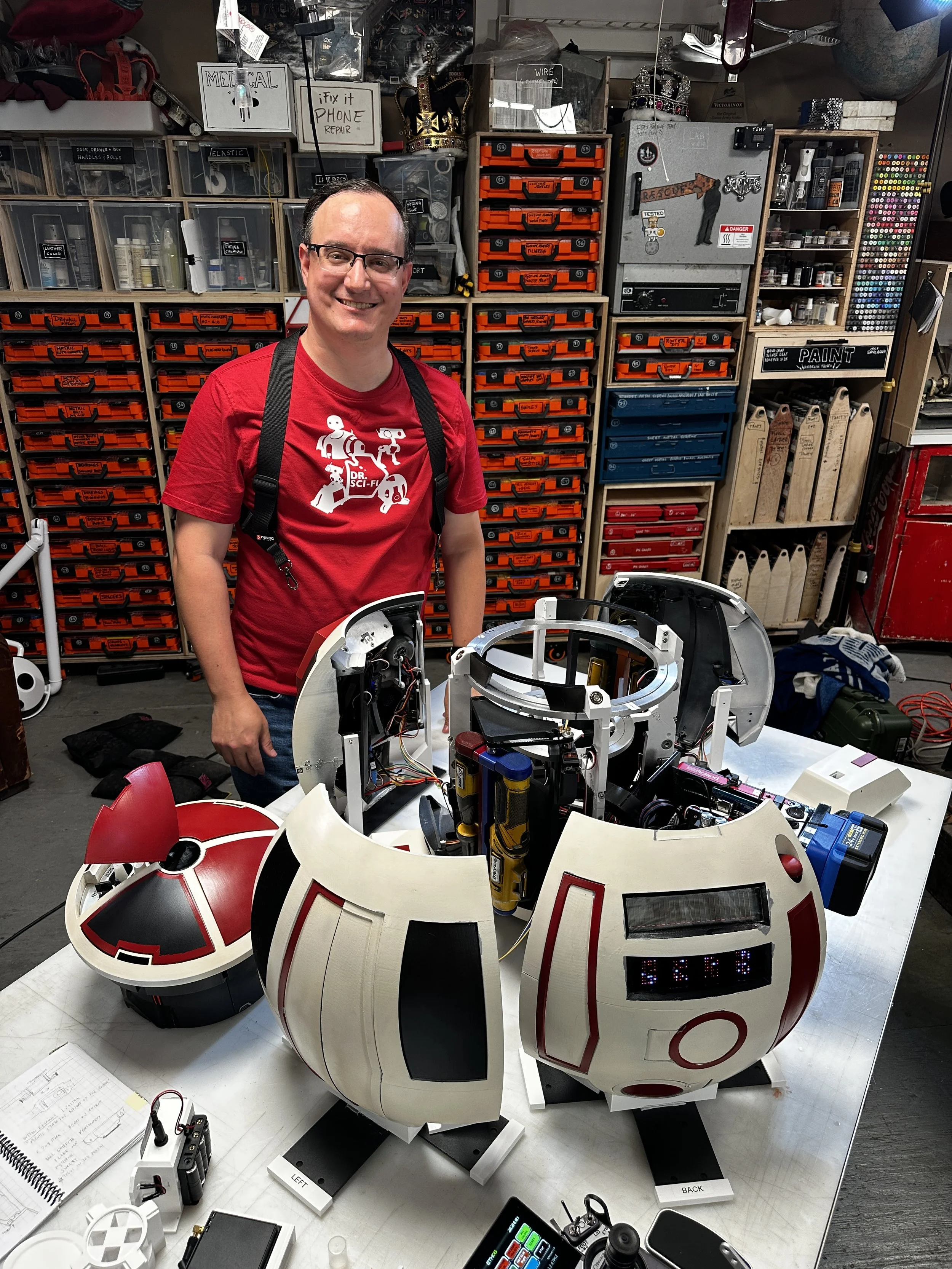

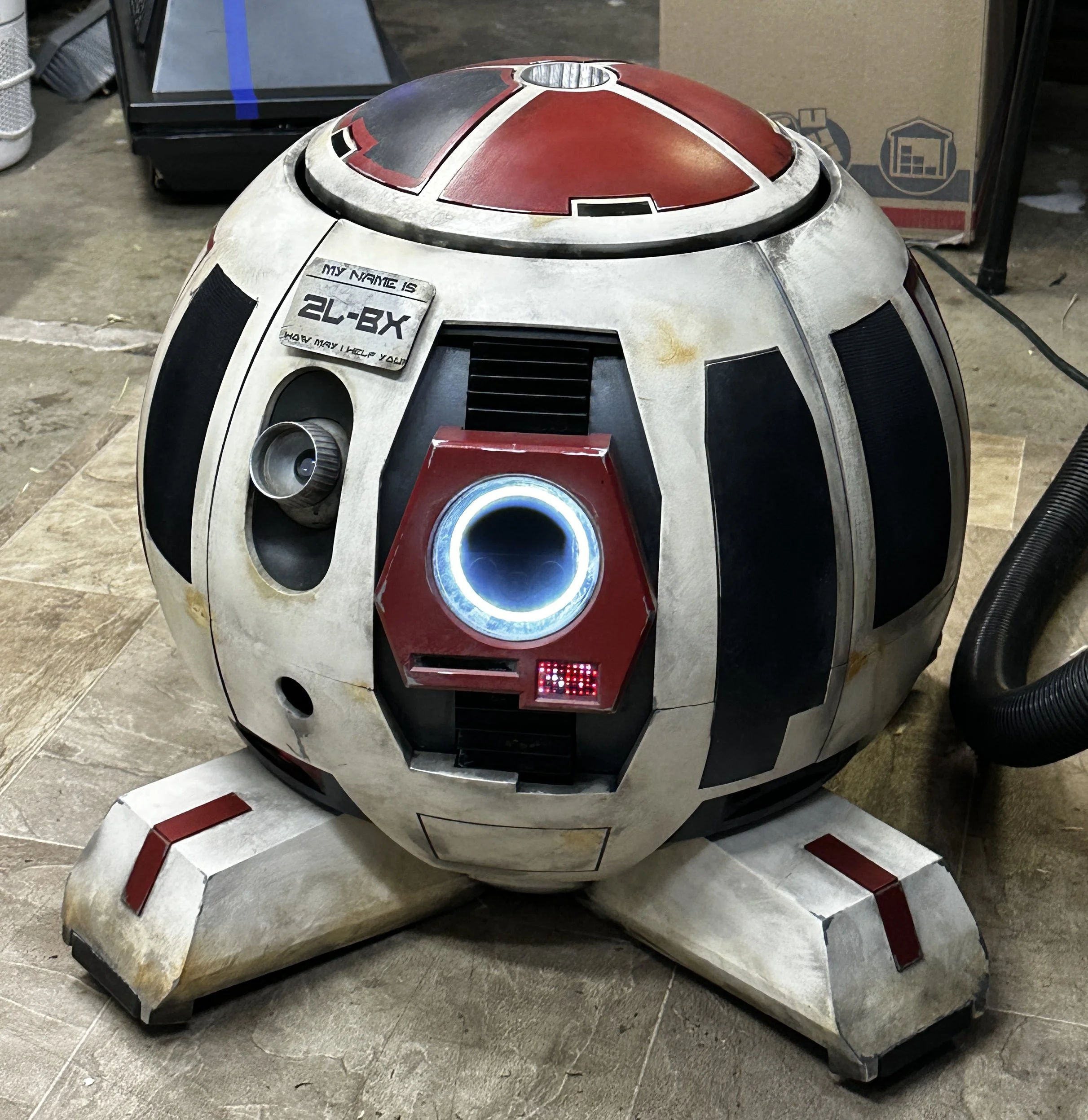

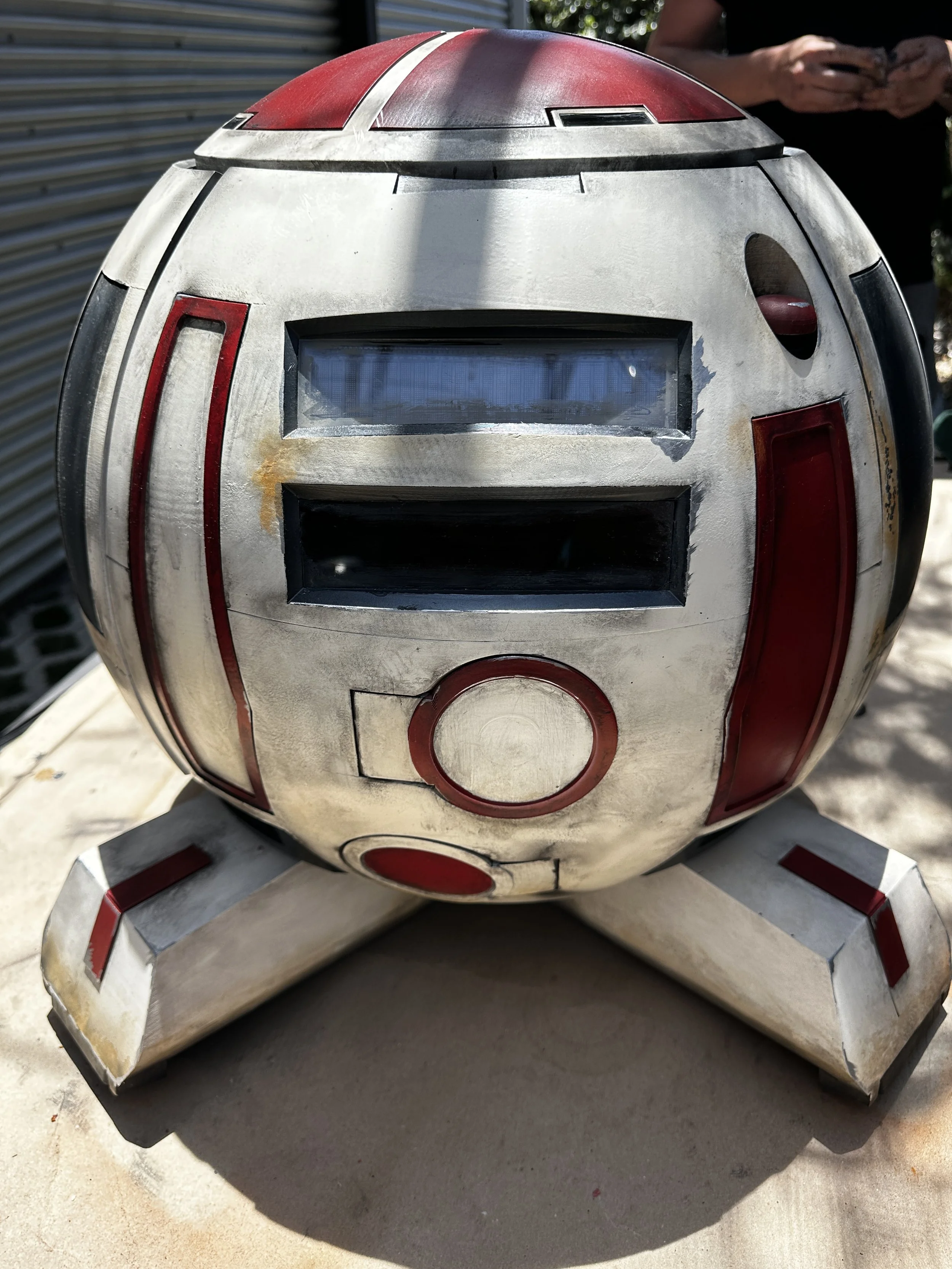

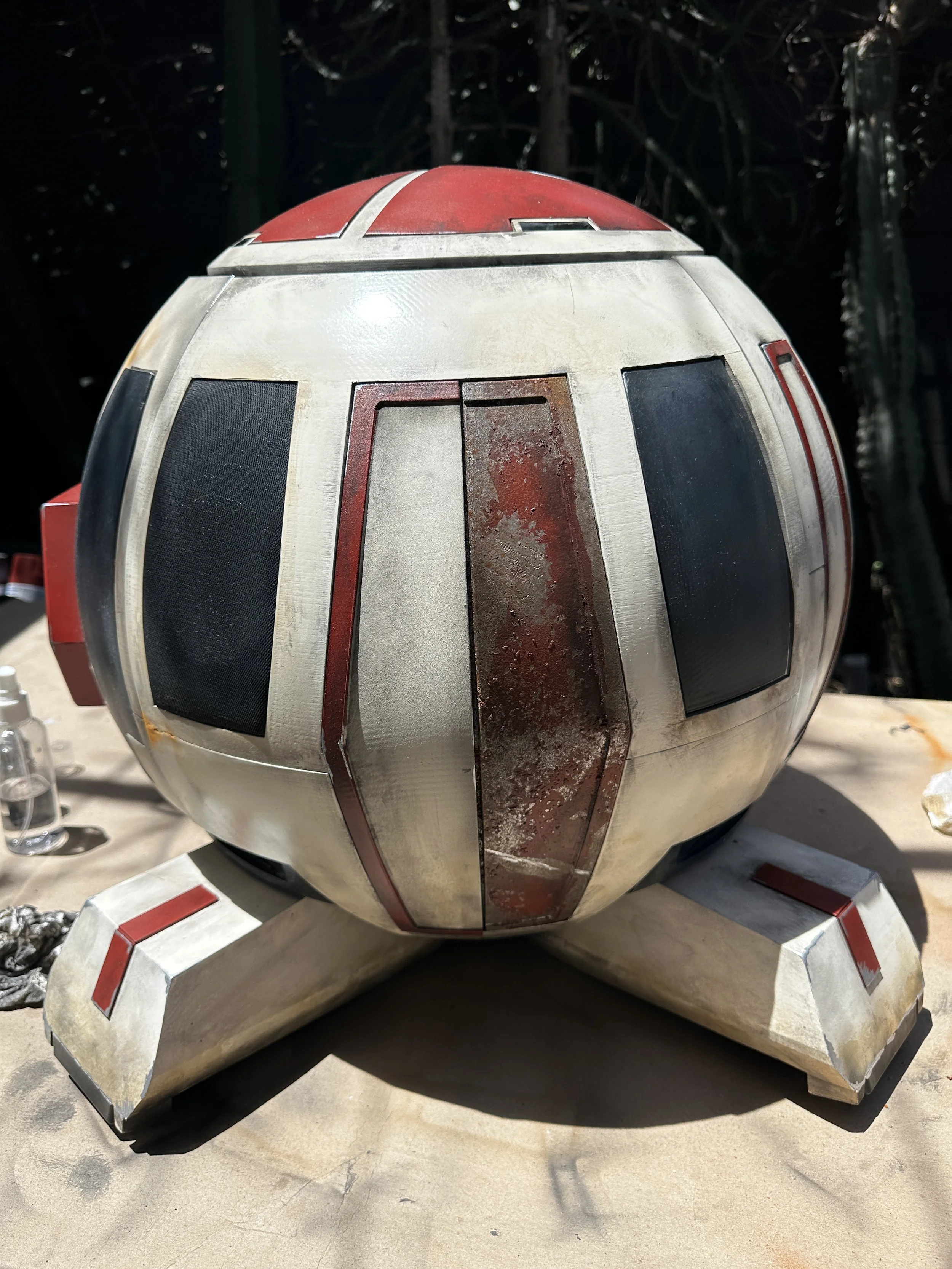

2L-BX will be an original droid based off of a DD-3 concept droid designed by Andrey Maximov for the 2016 ILM Art Challenge. I plan on making him a fully functioning tool box with deployable power tools and a full assortment of precision drivers and hex keys. He will drive using a Holonomic Drive. Still in the R&D phase (my favorite phase). He will be complete by LA Comic Con 2026 at the latest.

  • 30 Tool Groups

  • FrSky X20RS Transmitter

  • E-4 Voice Tweaker

  • Weight (50 lbs)

Droid Stats

  • 20” (508mm) - Sphere Diameter

  • 96mm Omni Wheels (4x)

  • 4.0ah Kobalt Battery

  • Kyber Control System

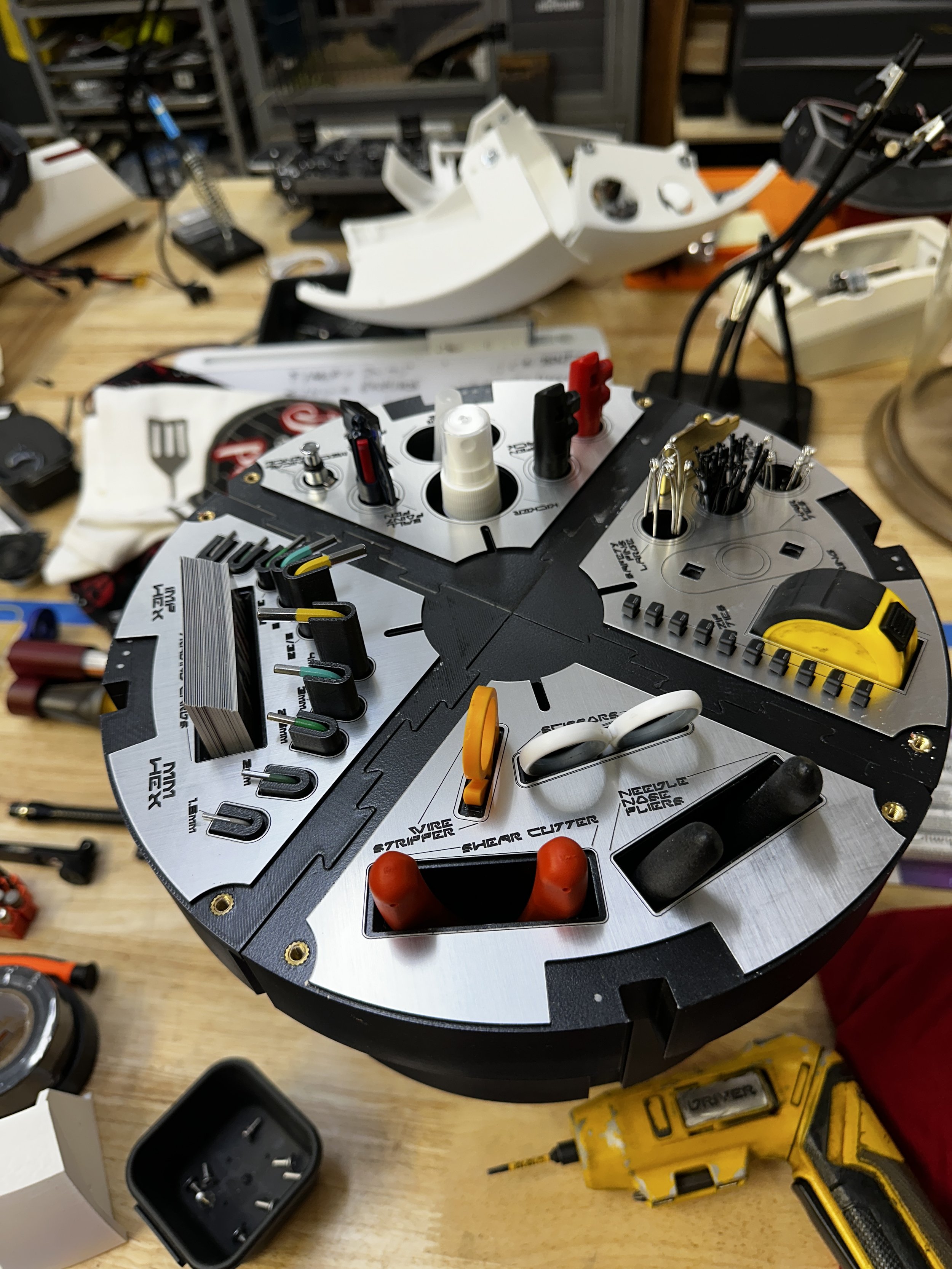

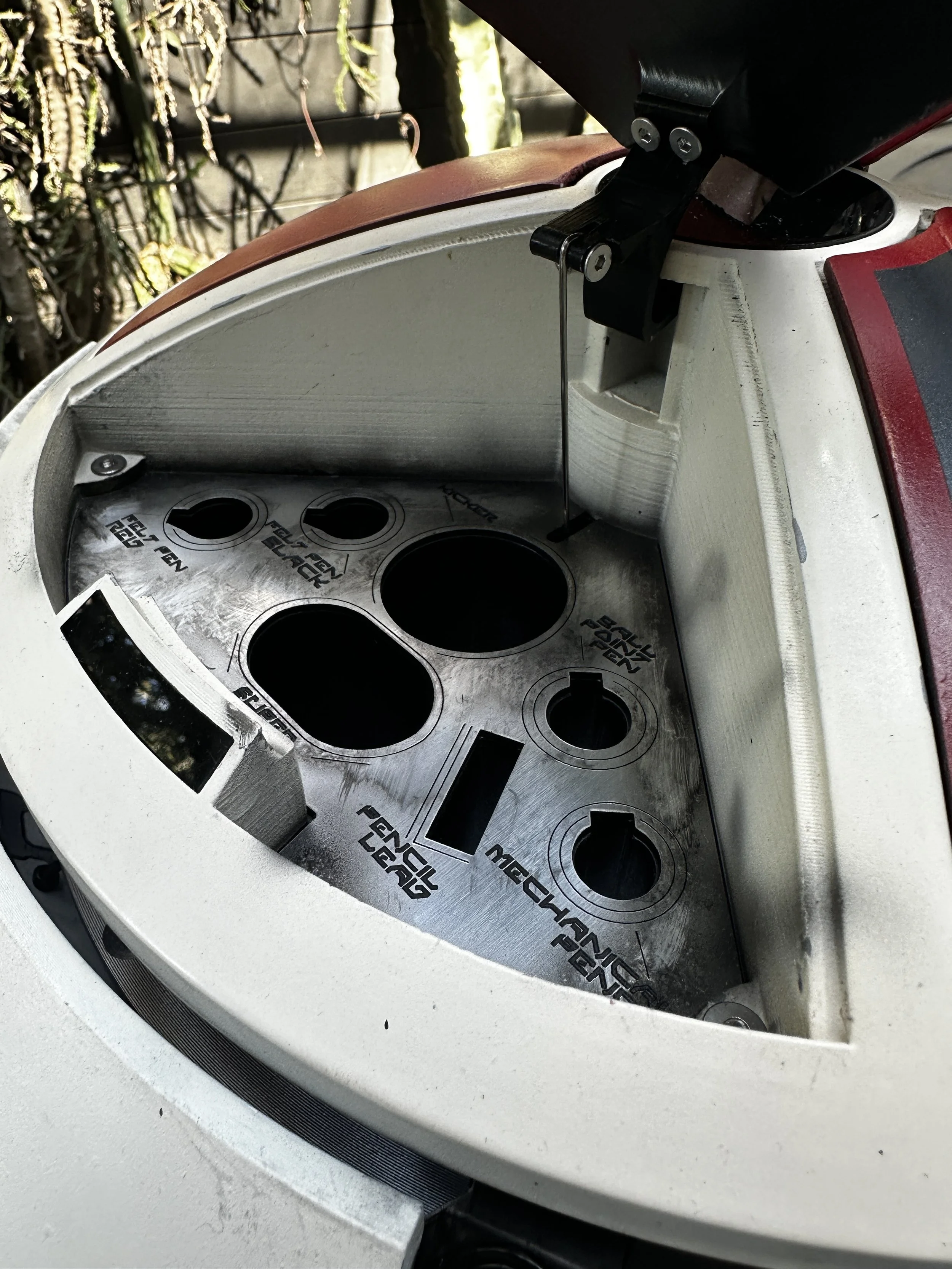

Tool Carousel rotates in core (3/15)

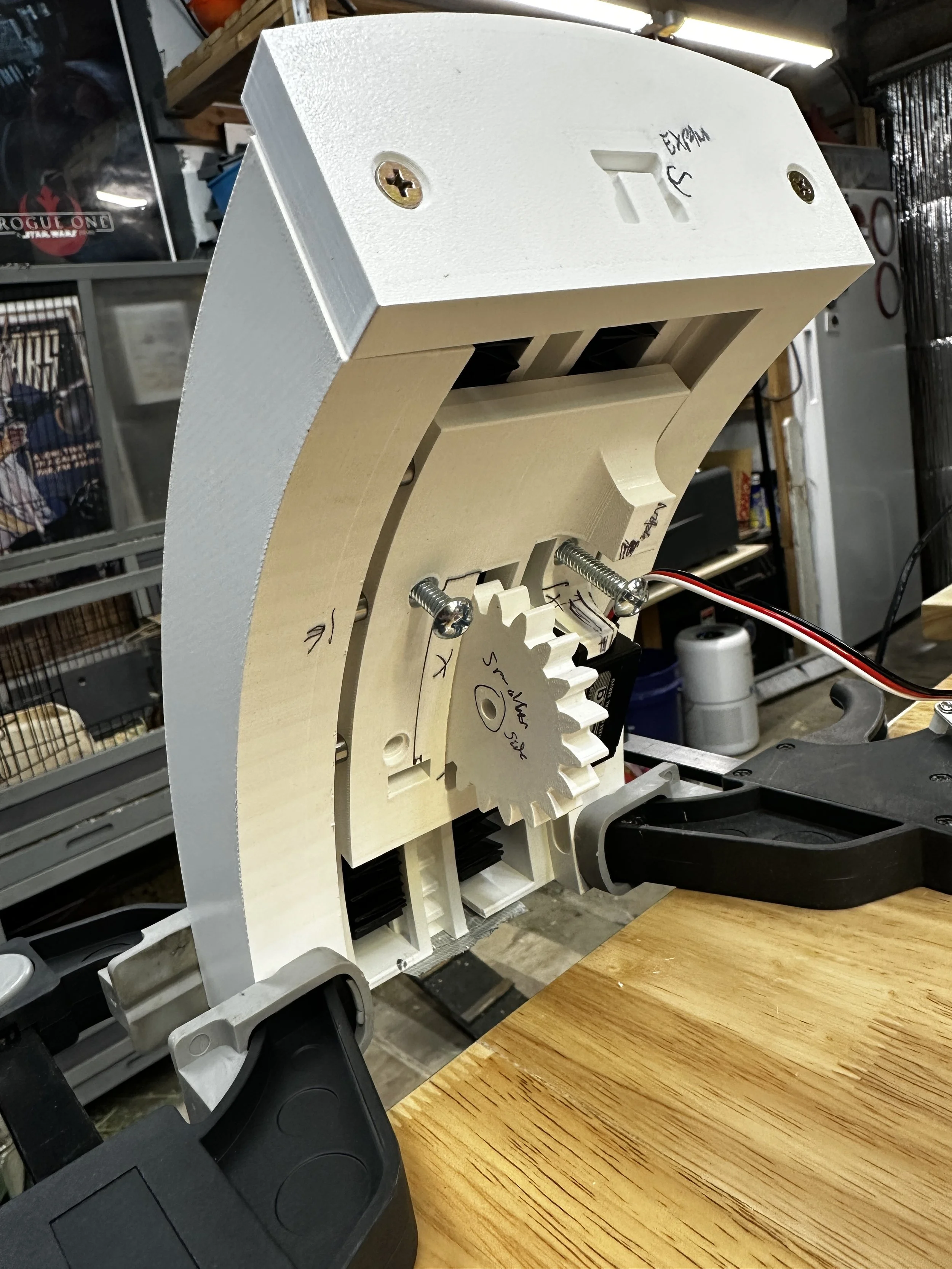

Carousel pie plates (6/24

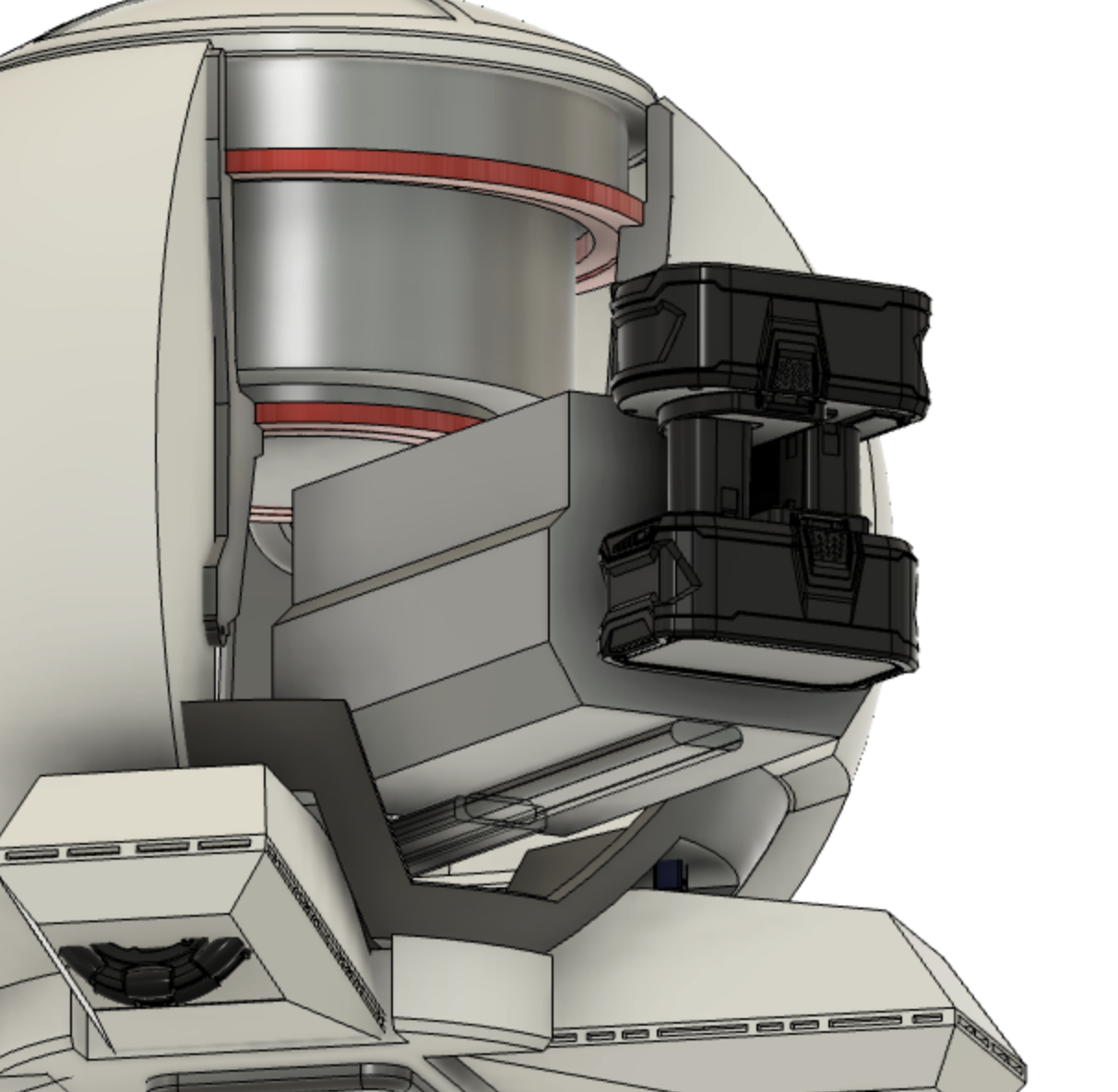

Side Pocket mechanism (1/15)

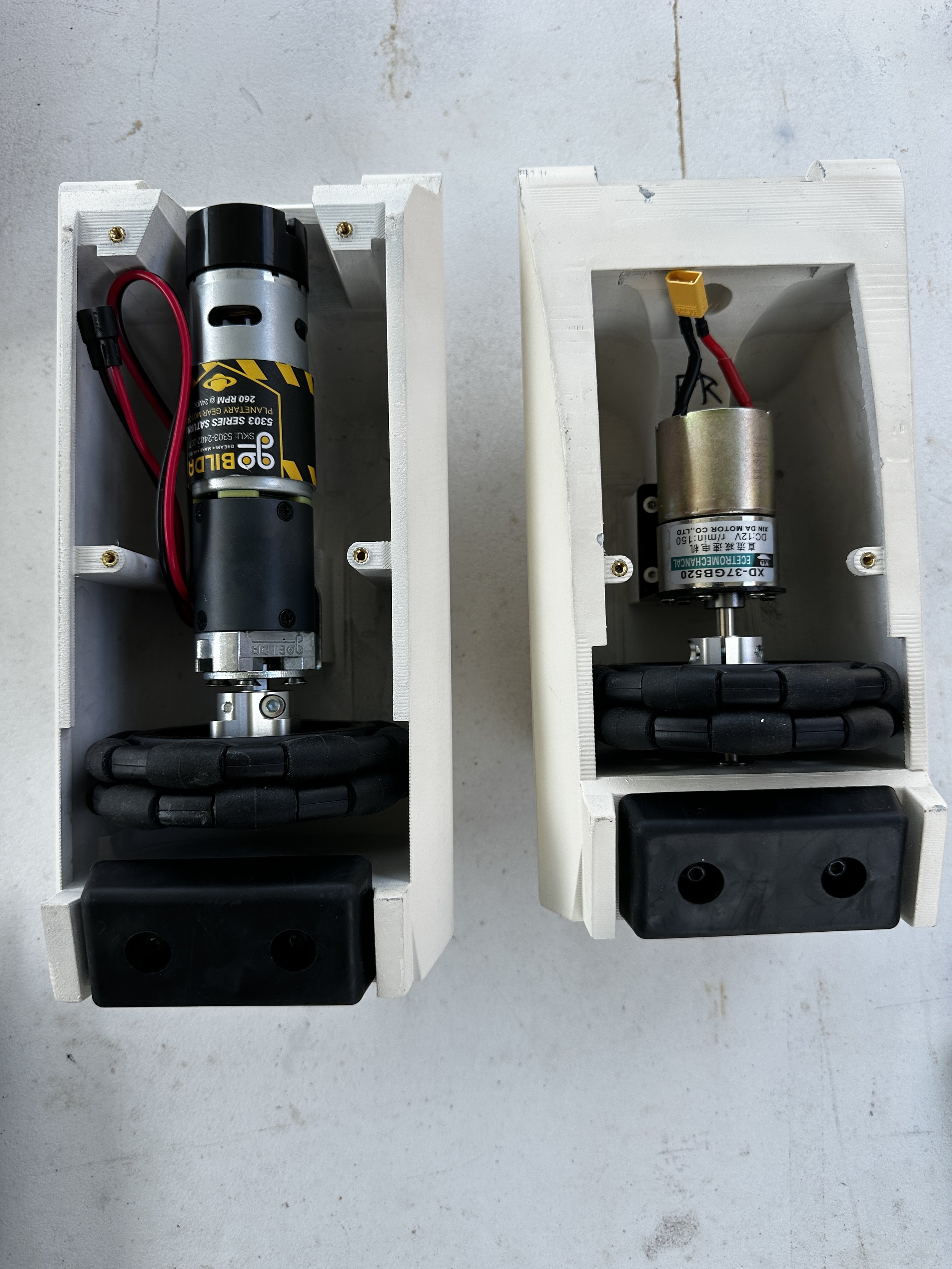

Motor upgrade (5/17)

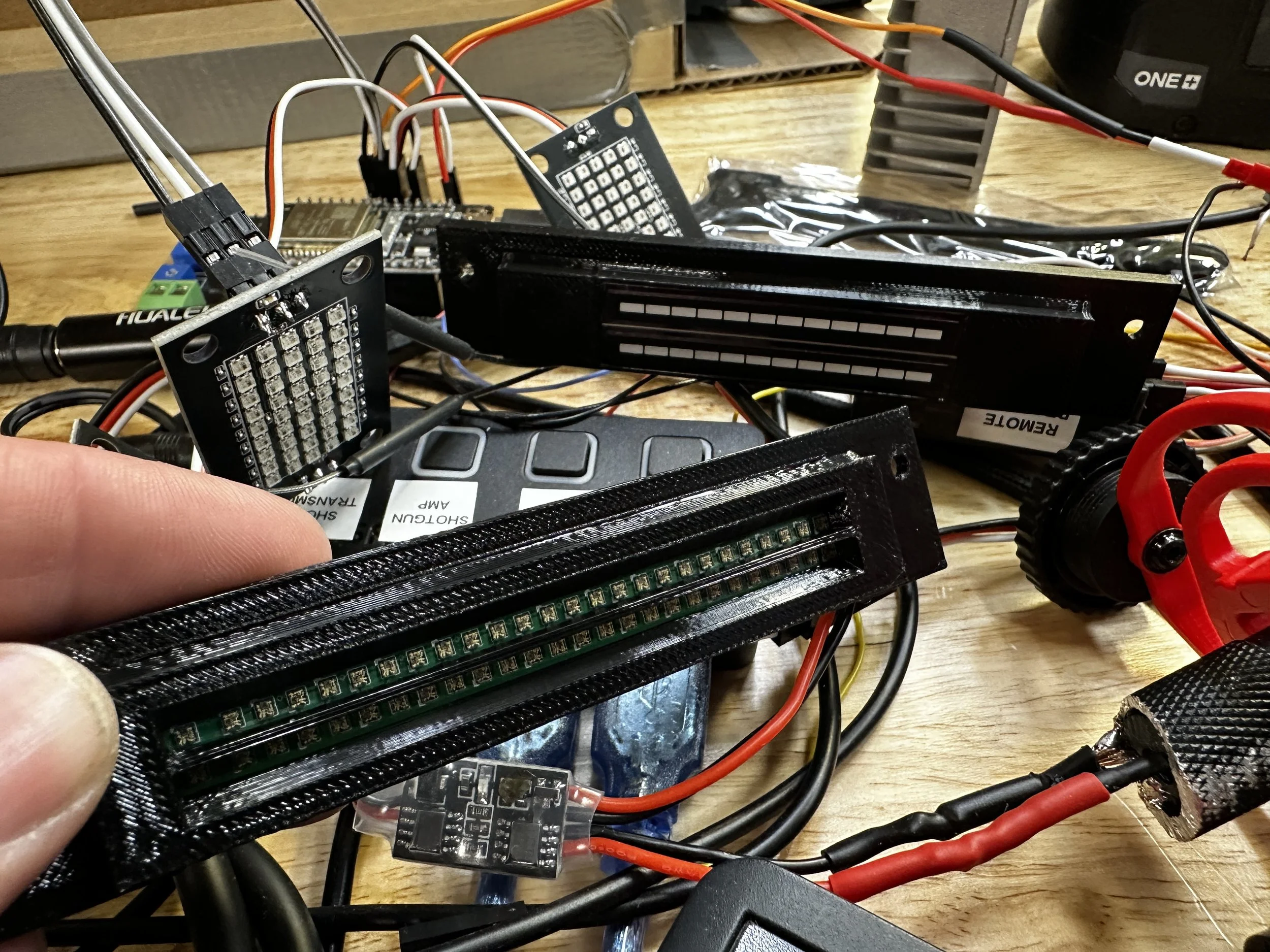

LED inserts for each corner of the bowl (3/15)

Toe lean: forward, back, left, right

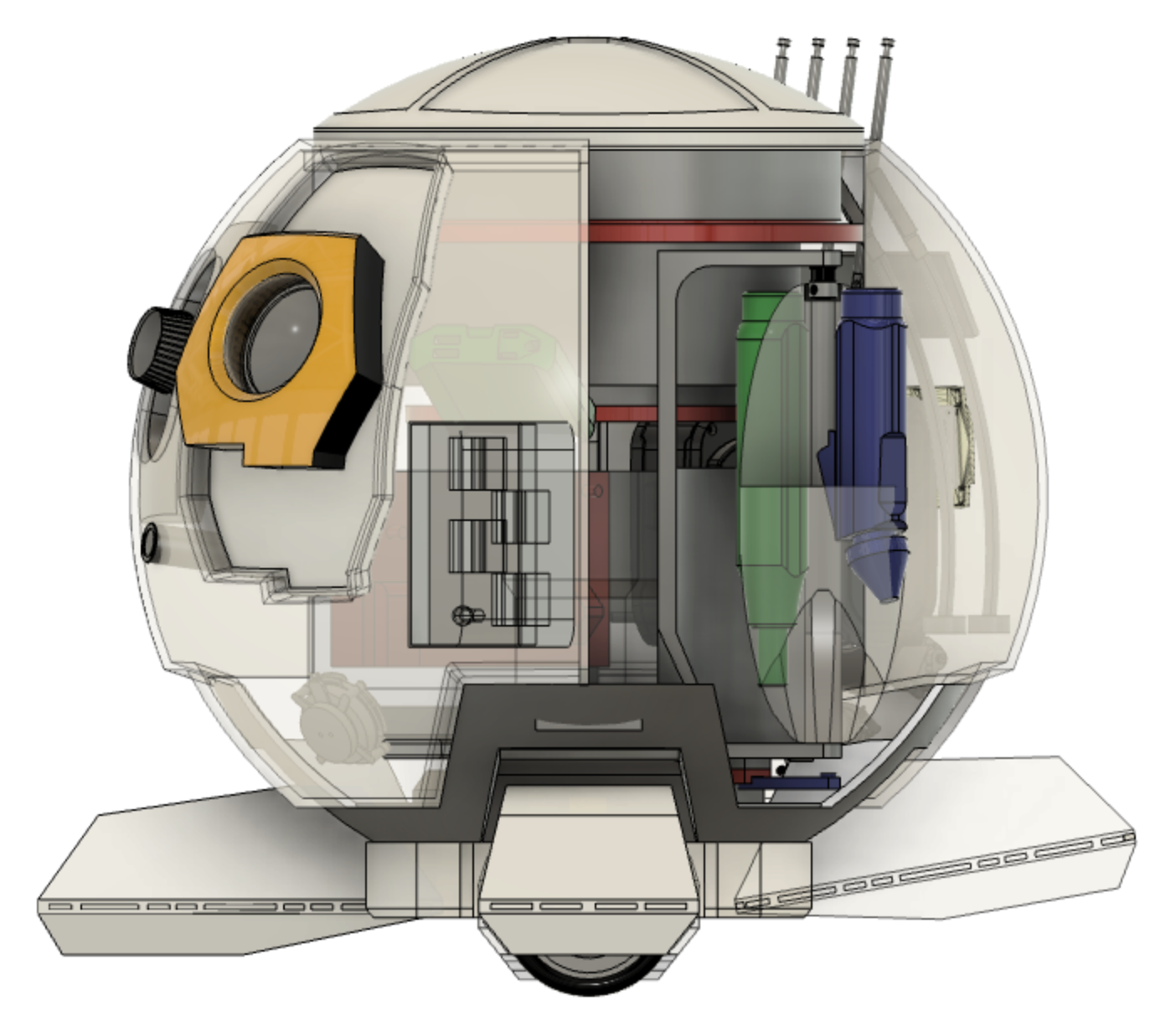

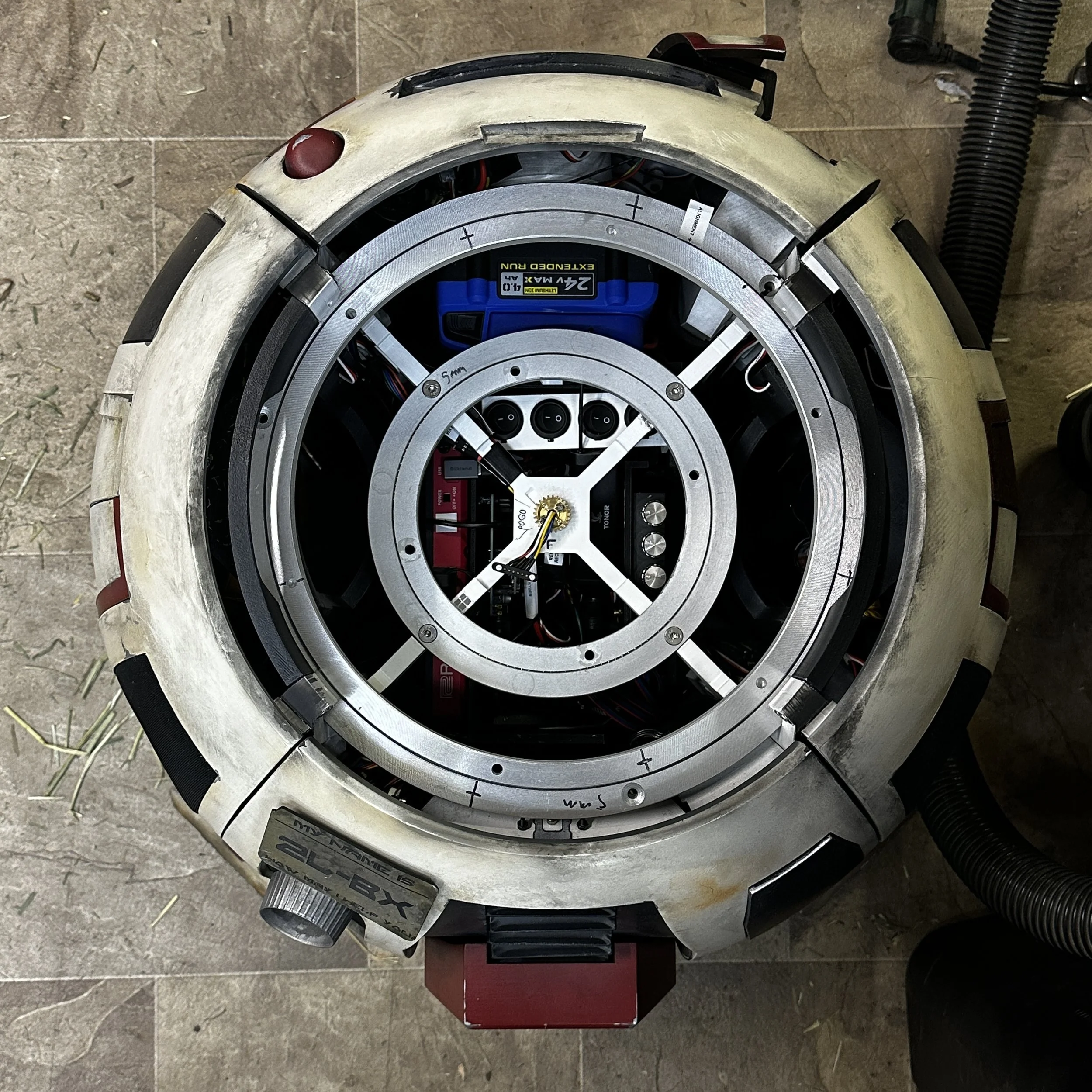

Internal core structure with Electronics Trunk. (1/29)

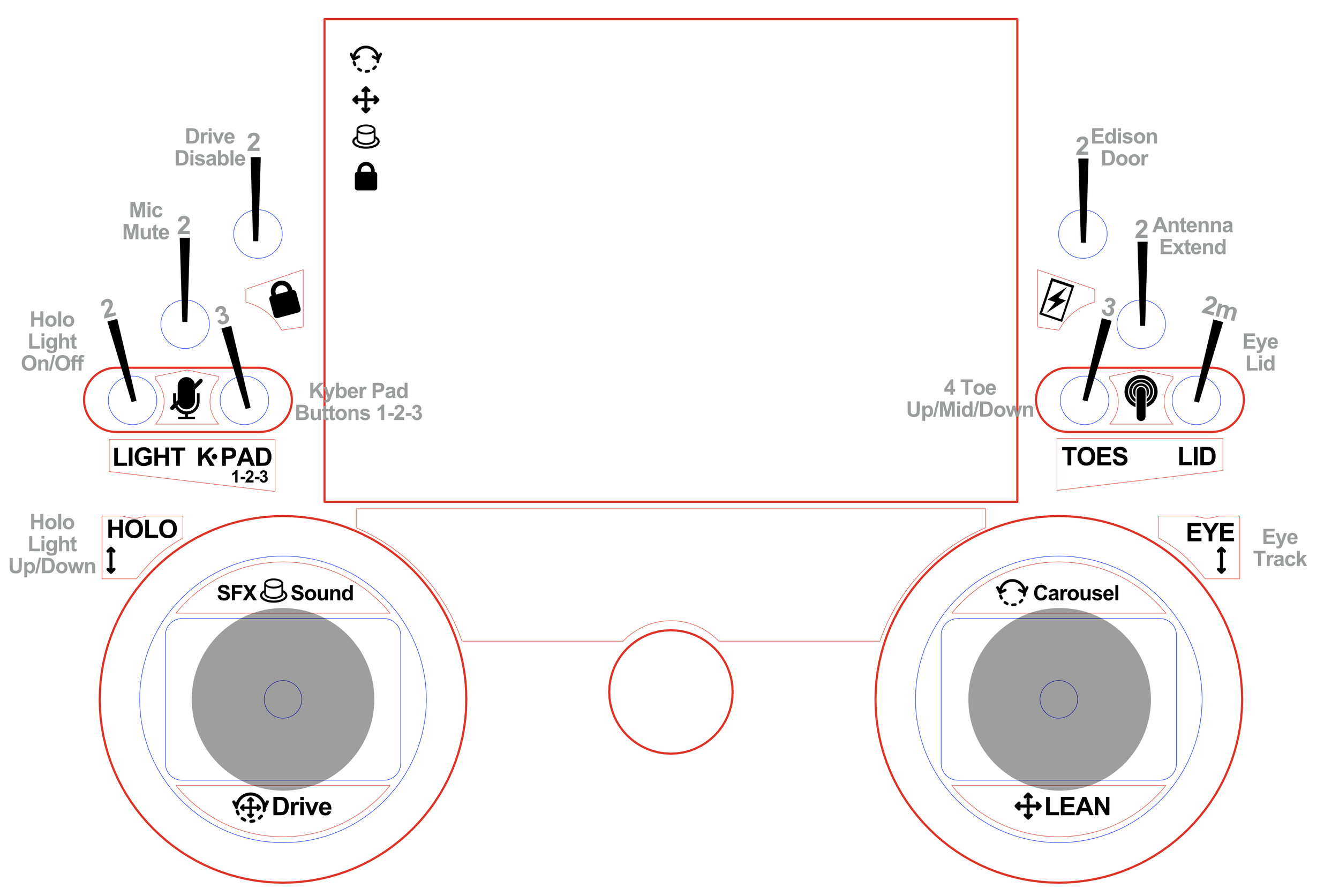

X20RS transmitter switch layout (1/29)

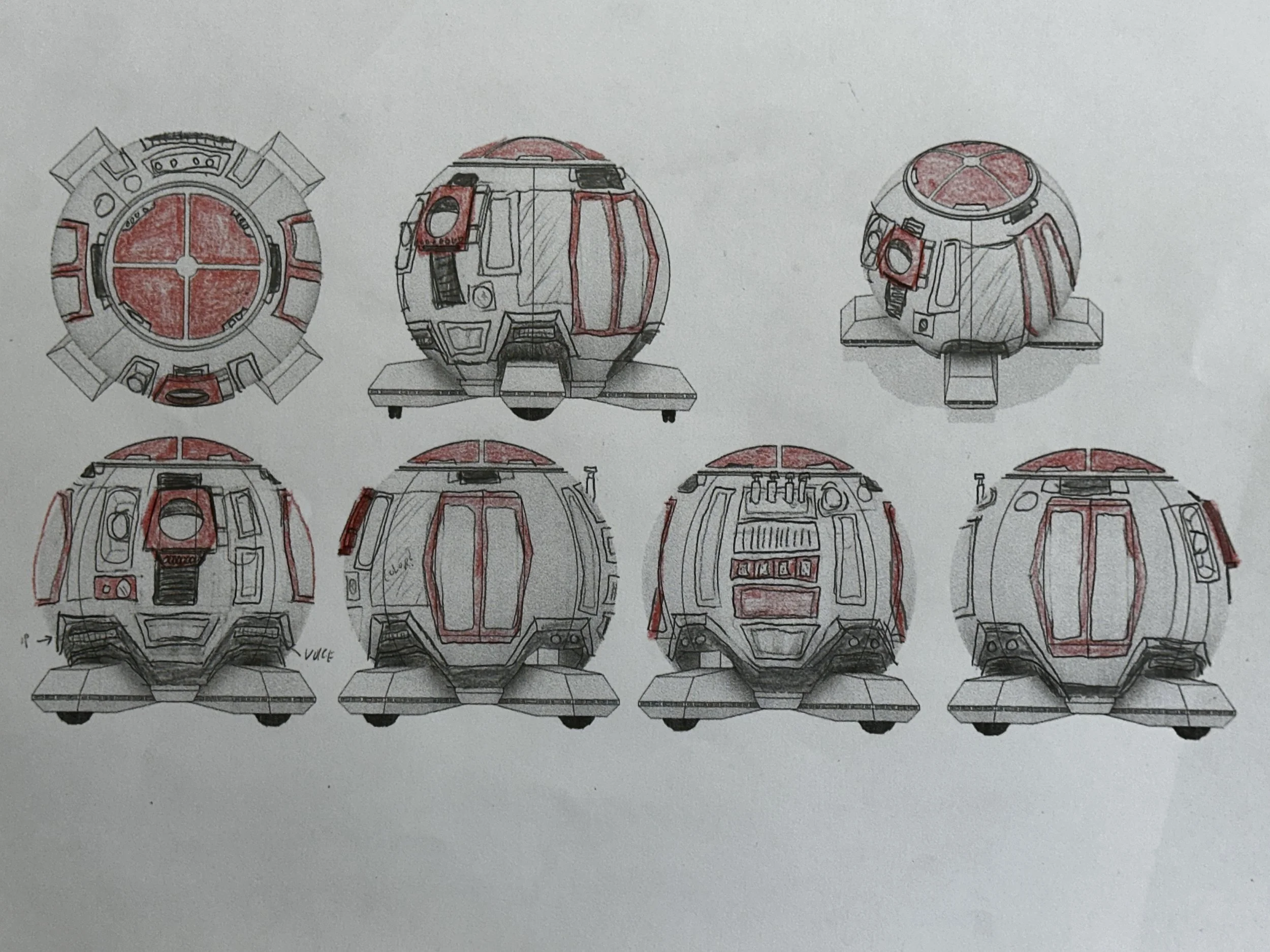

Panel lines and final detail sketches. Starting to experiment with color. (1/29)

Update 6/27

Scale estimate between TL-BX and R2-D2

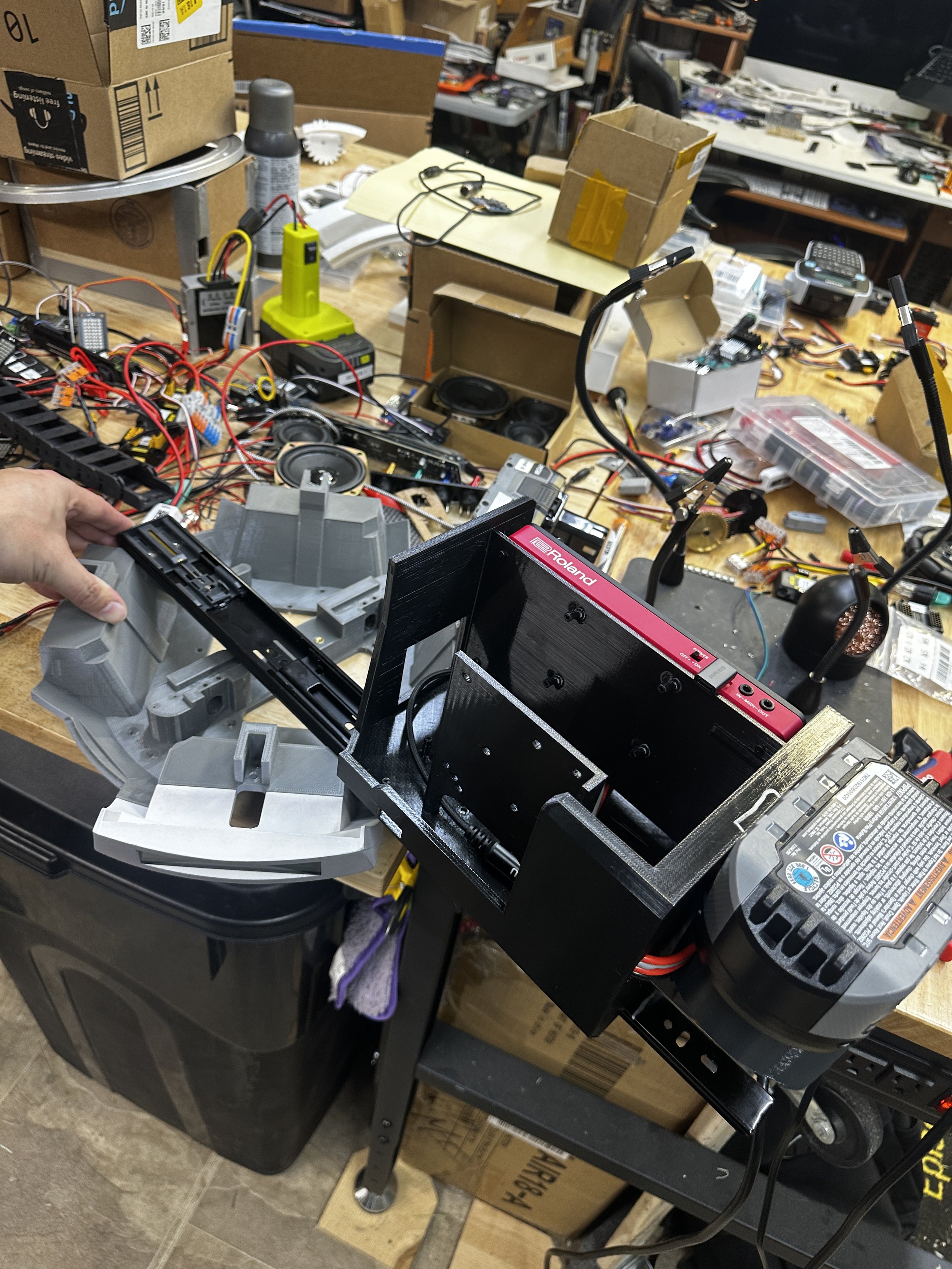

Electronics trunk on drawer slider to allow access and battery swap (3/15)

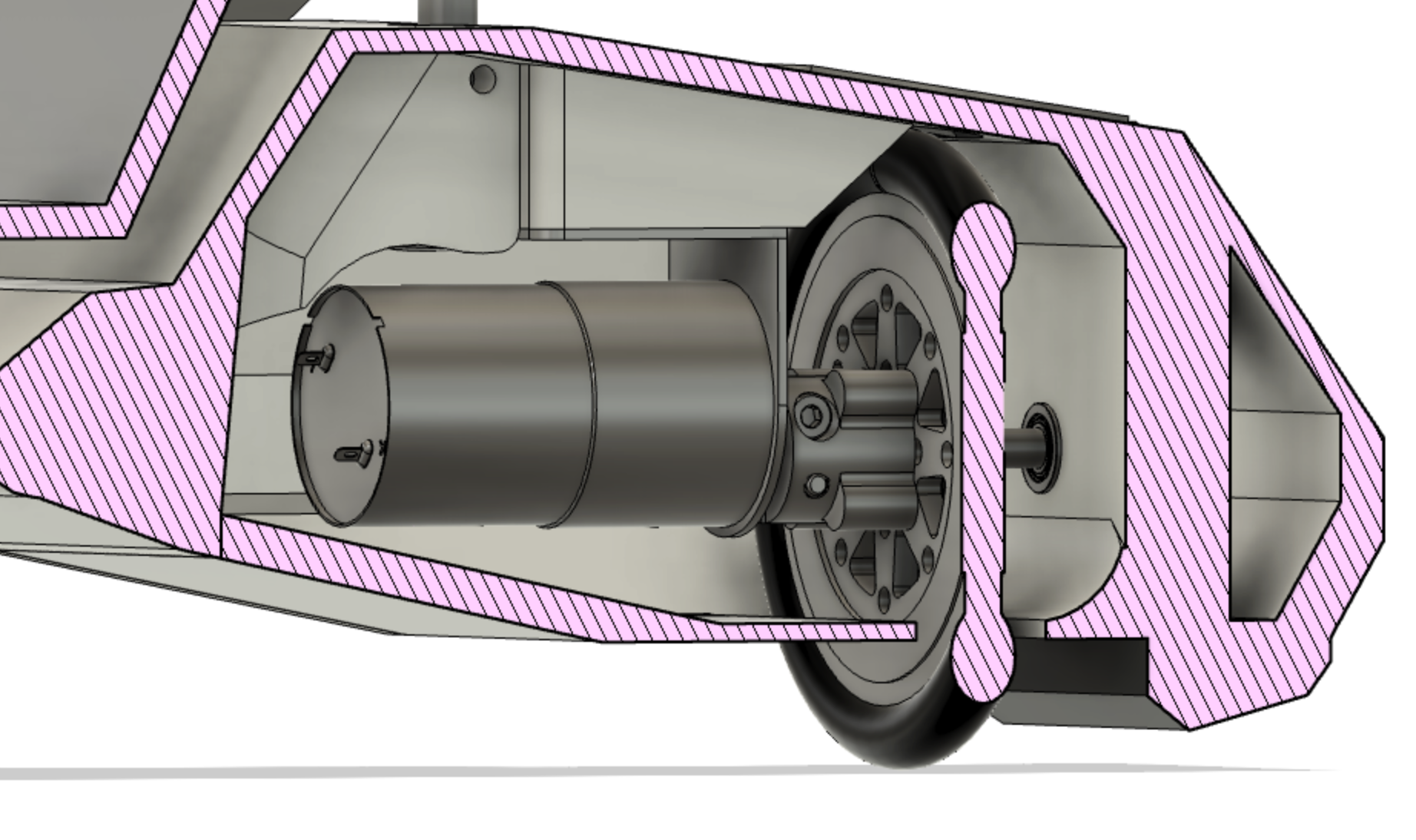

Omni Wheels for all direction drive (1/29)

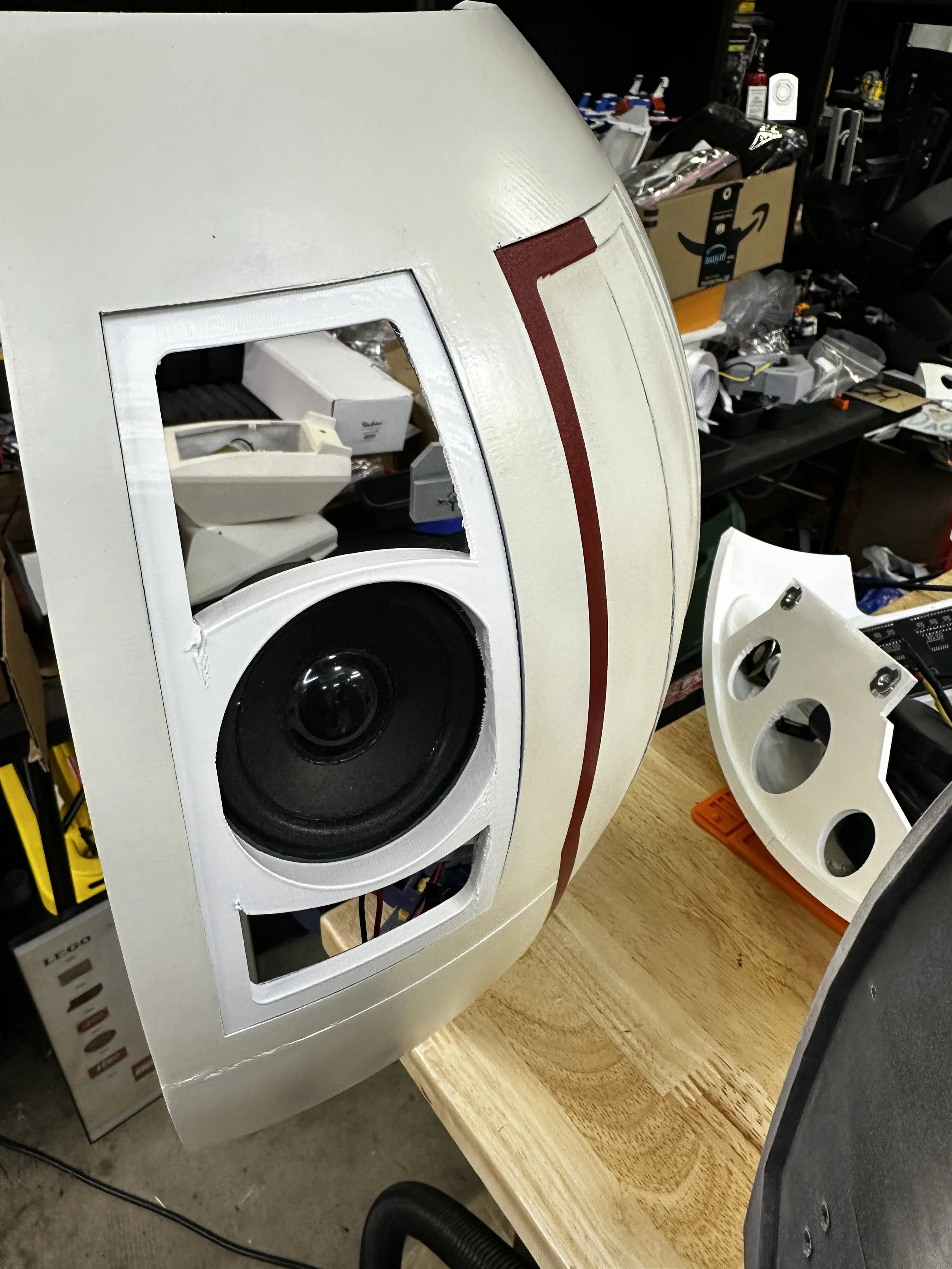

Temporary speaker mounts (6/26)

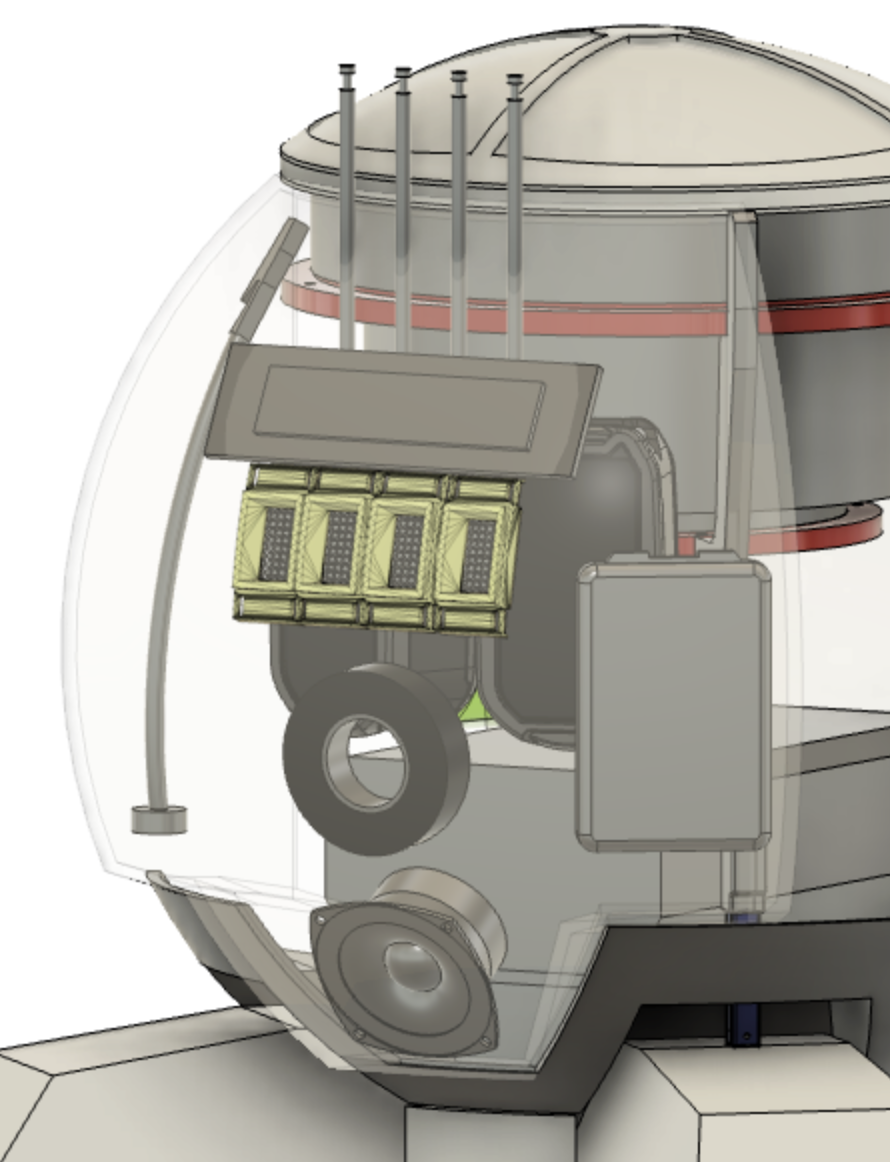

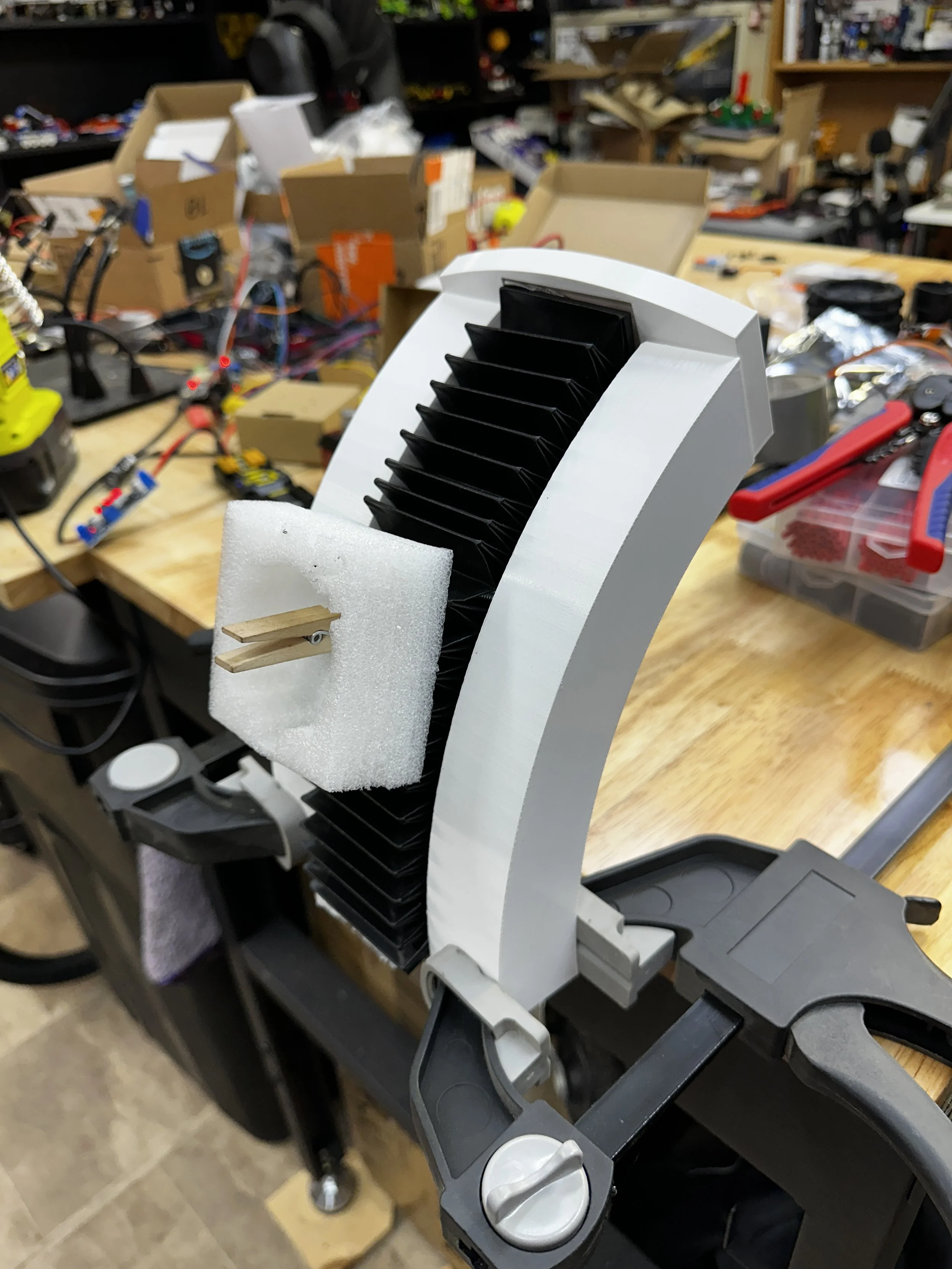

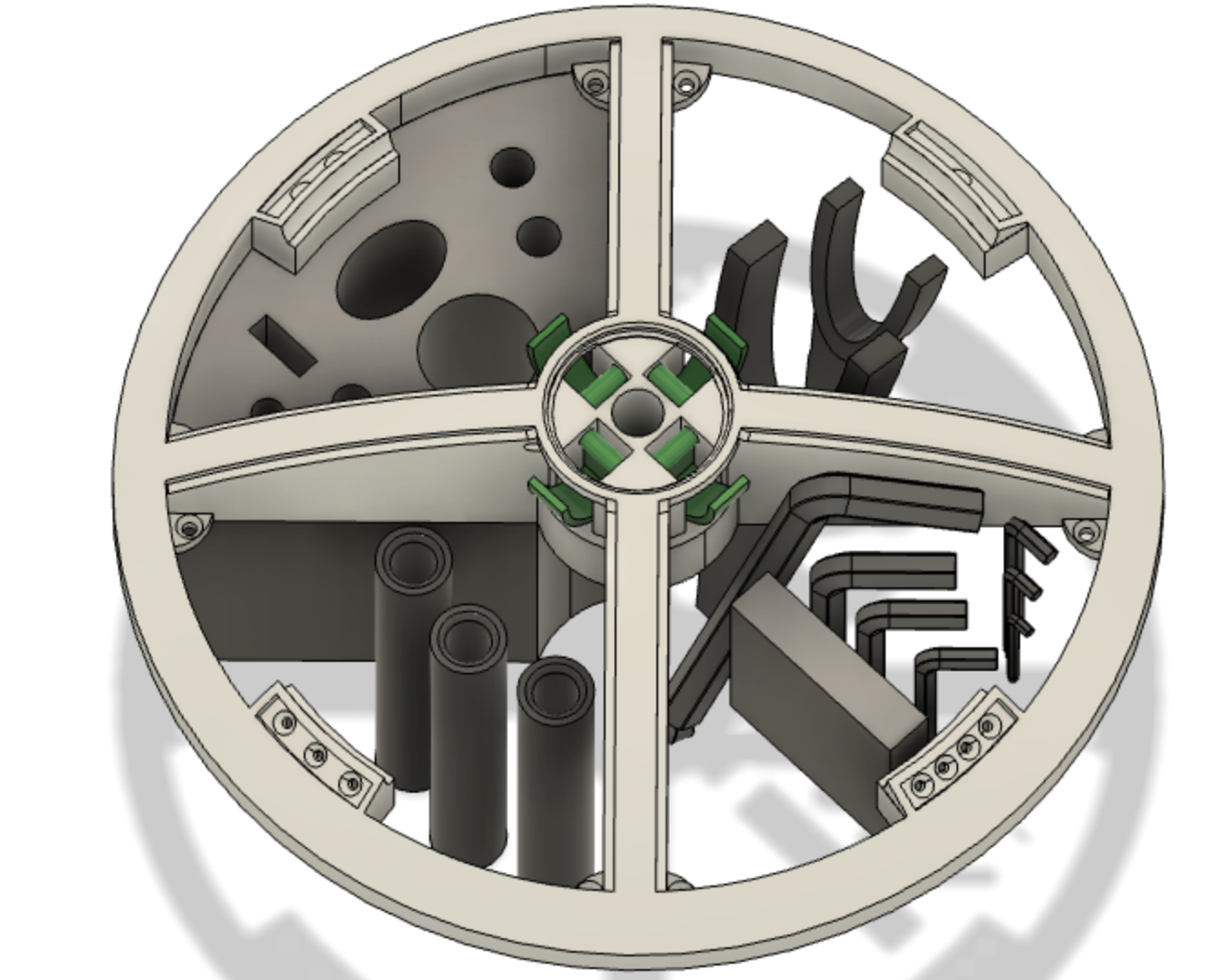

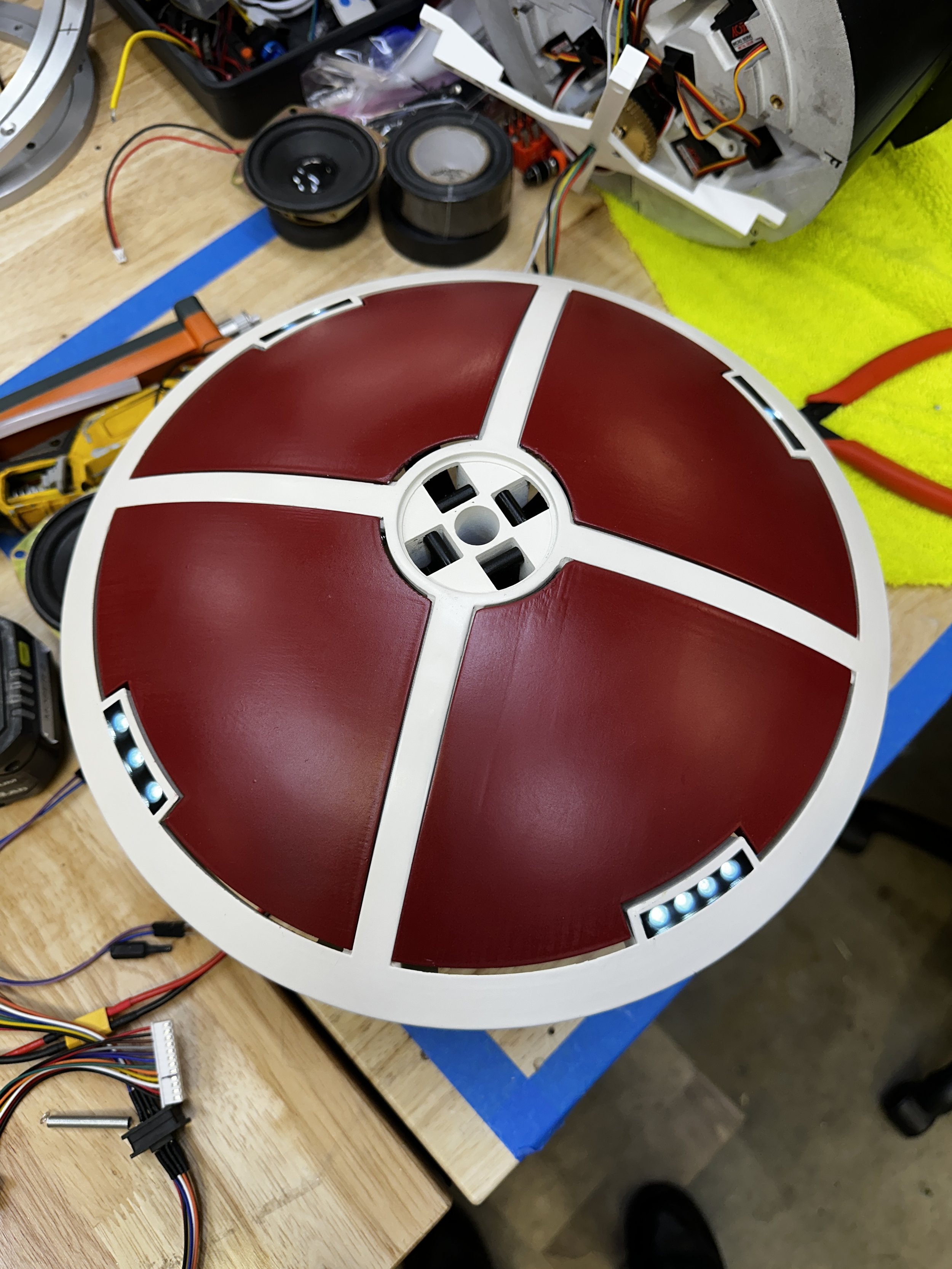

Tool carousel wedges (6/21)

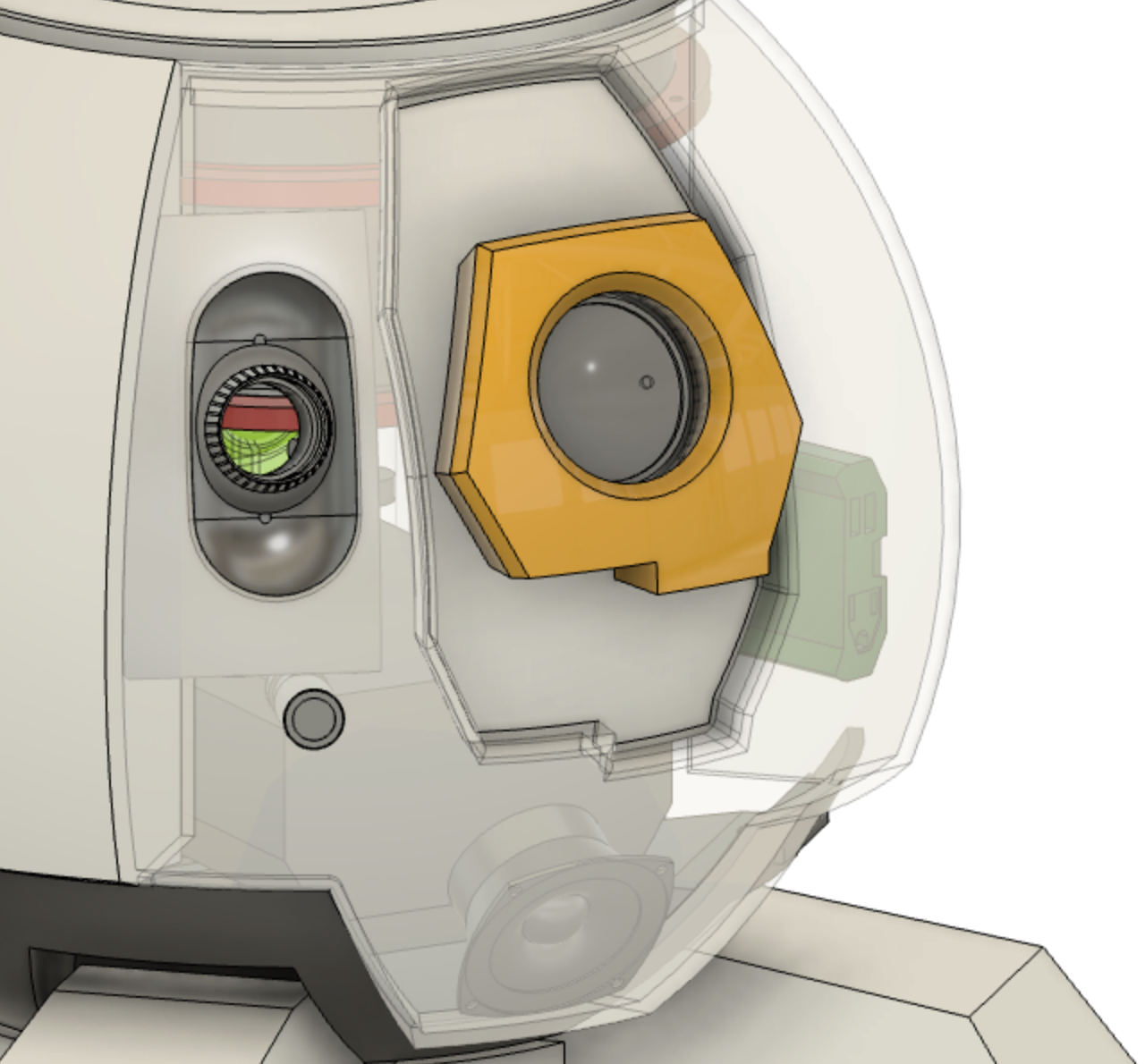

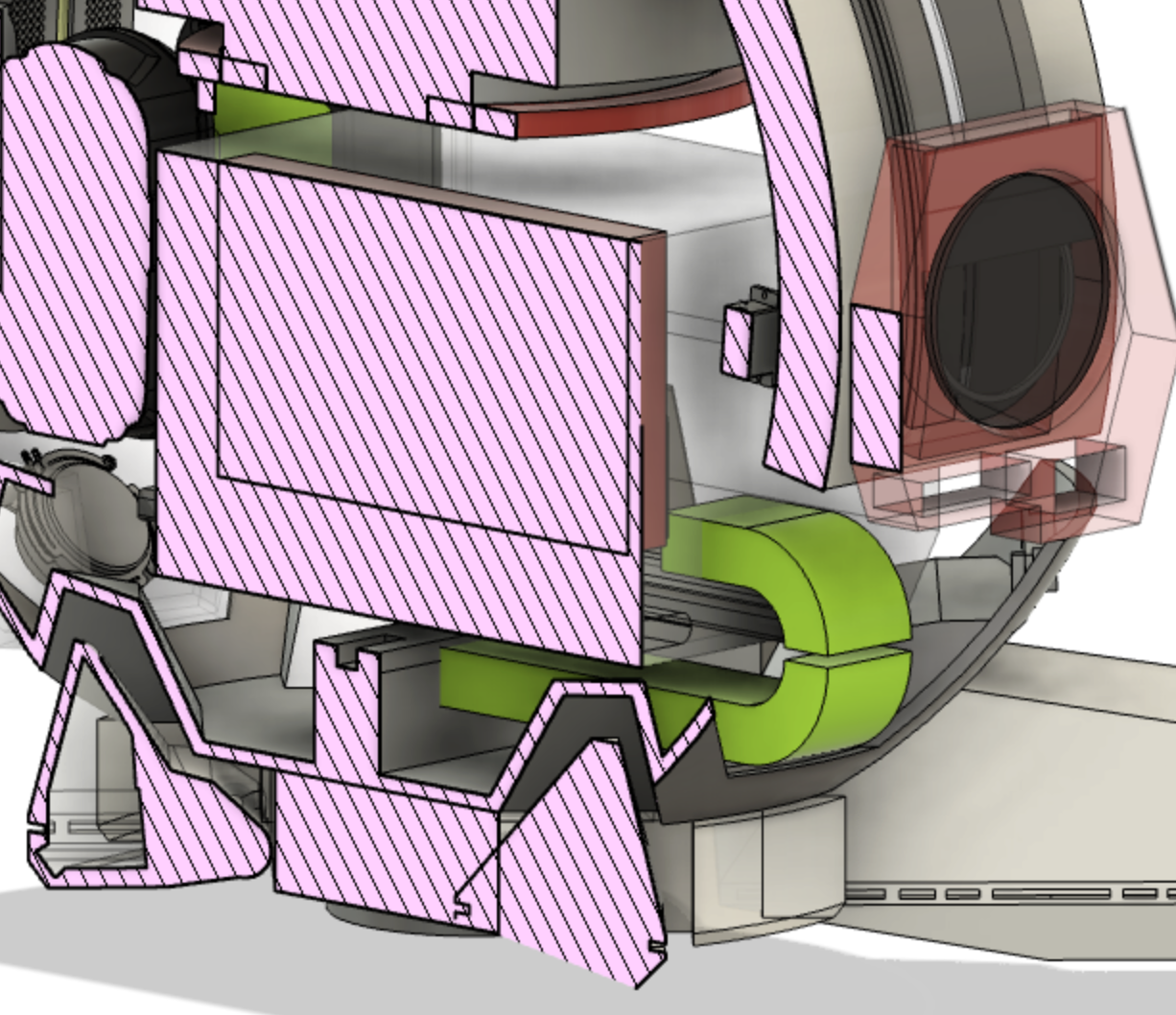

Flat eye with internal lid design (2/6)

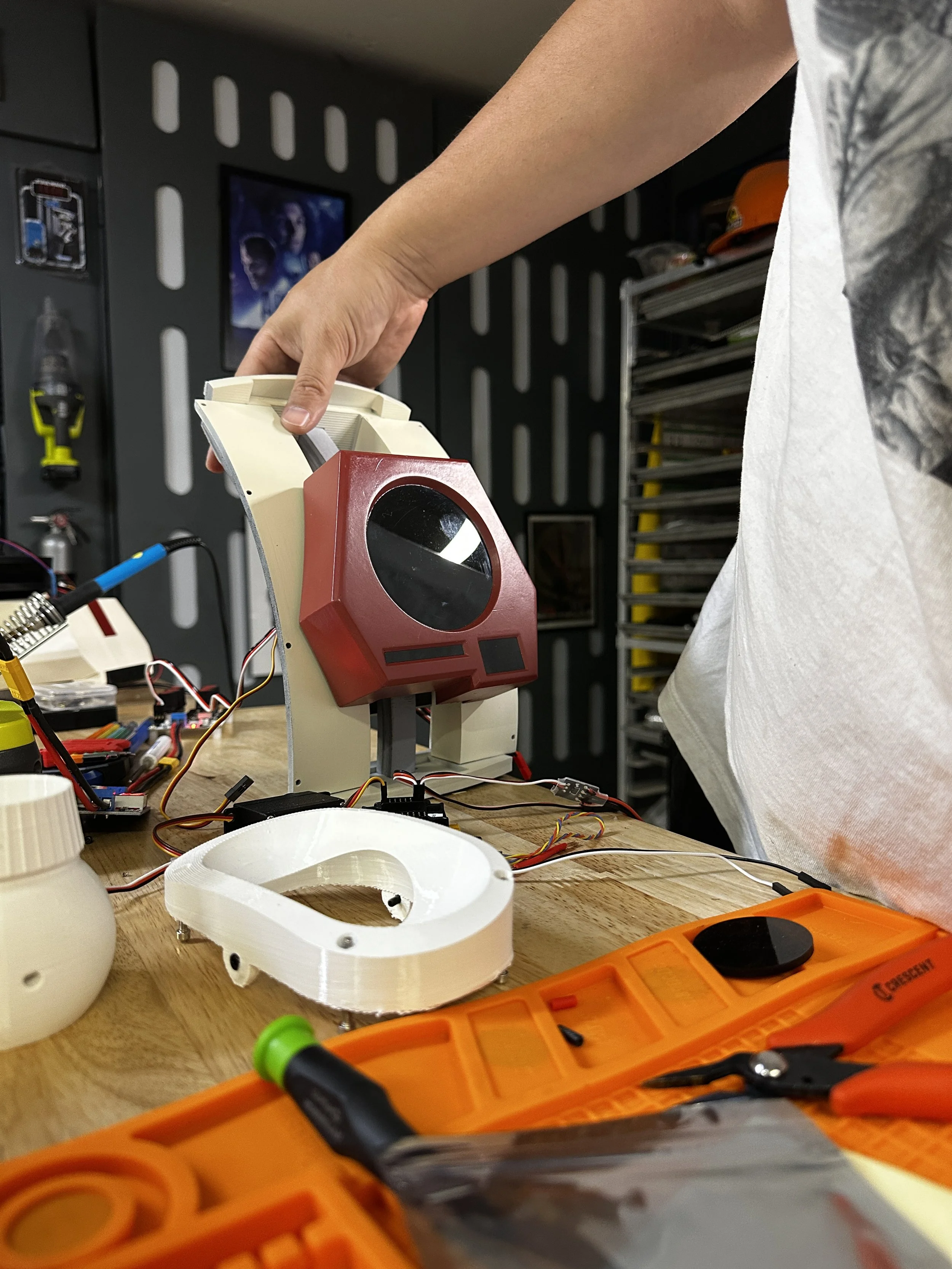

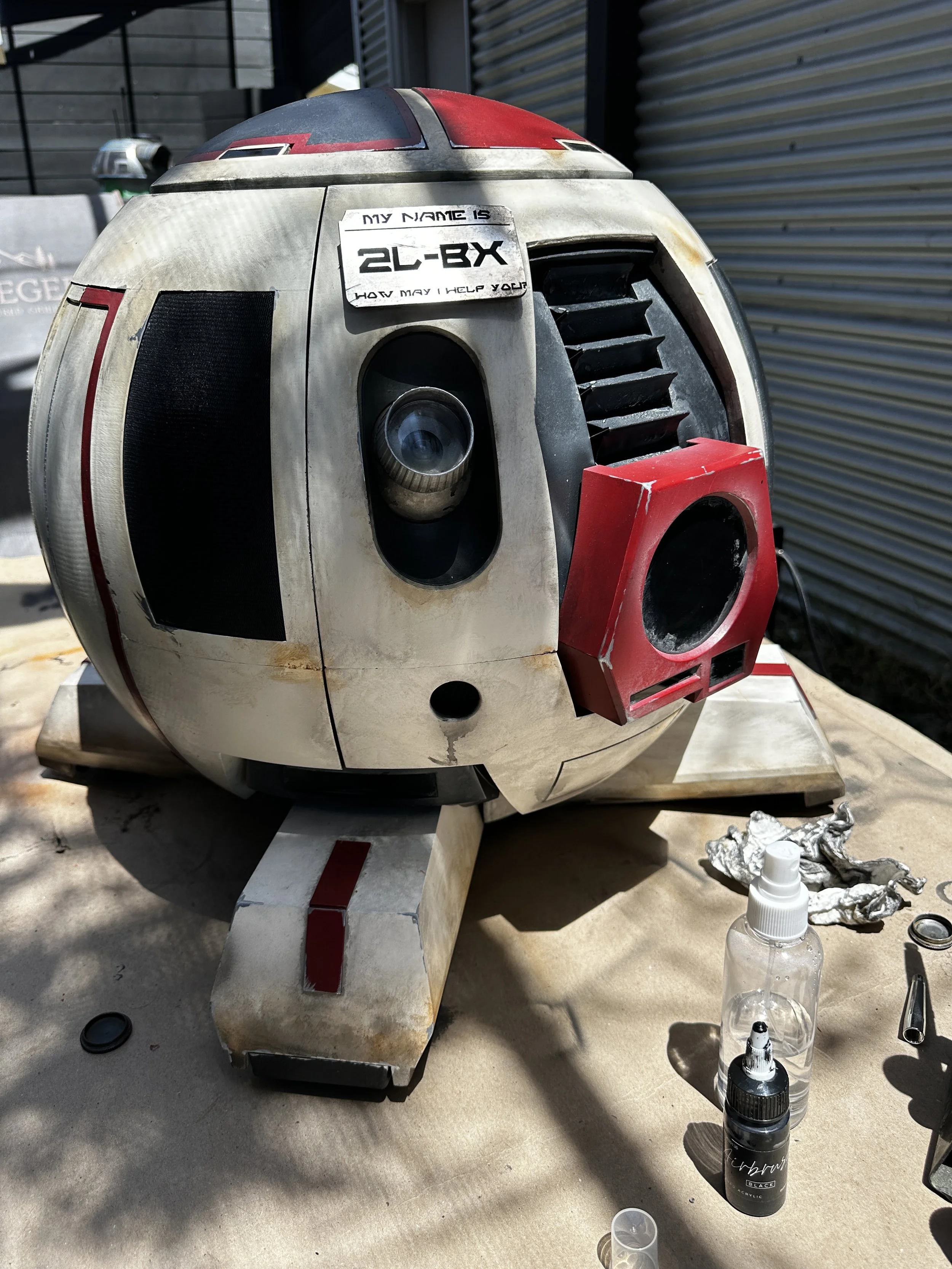

Finished Eye mech (6/5)

Cable Raceway Calculations for central electronic trunk (2/6)

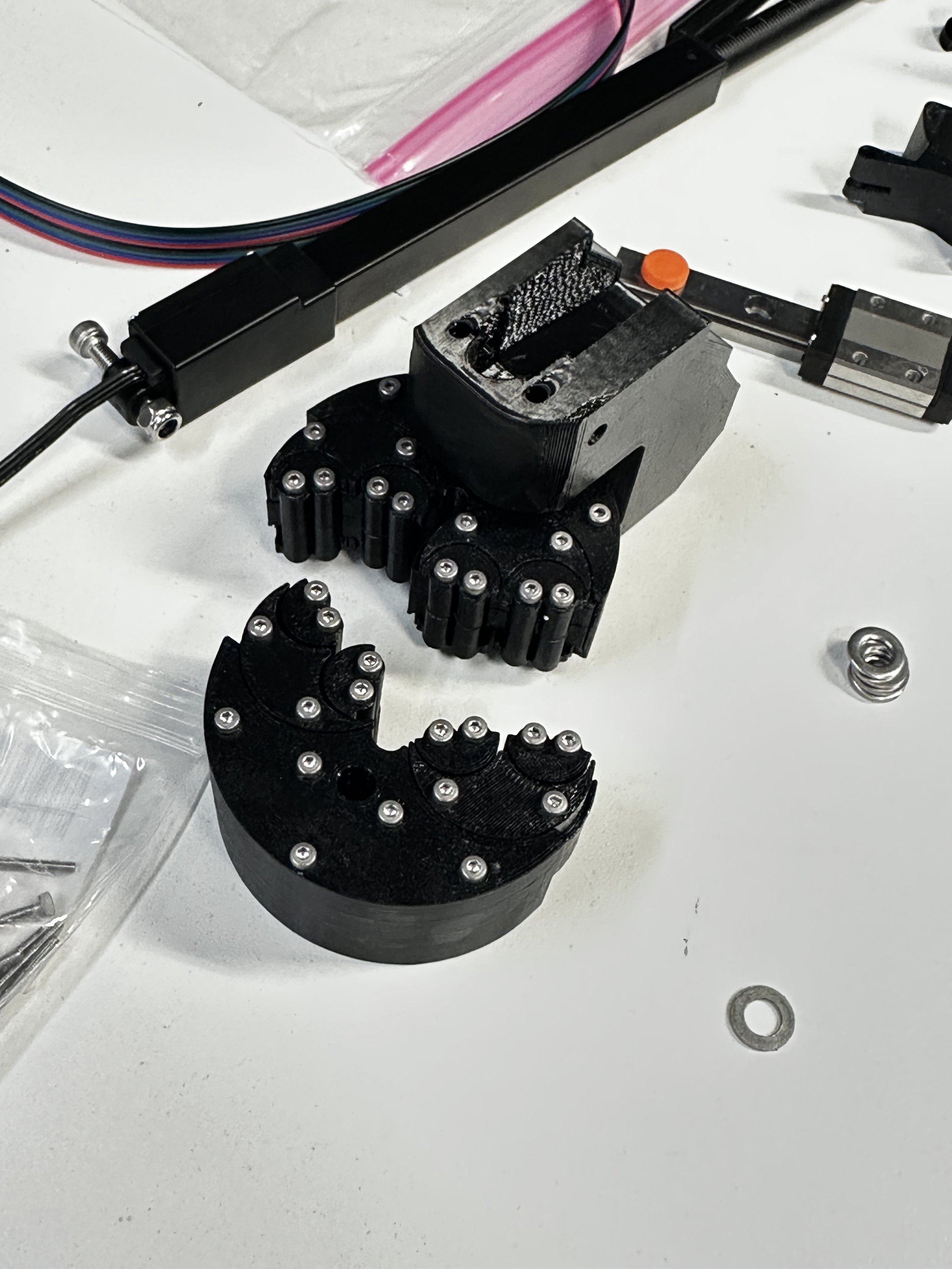

Fractal vise print (6/19)

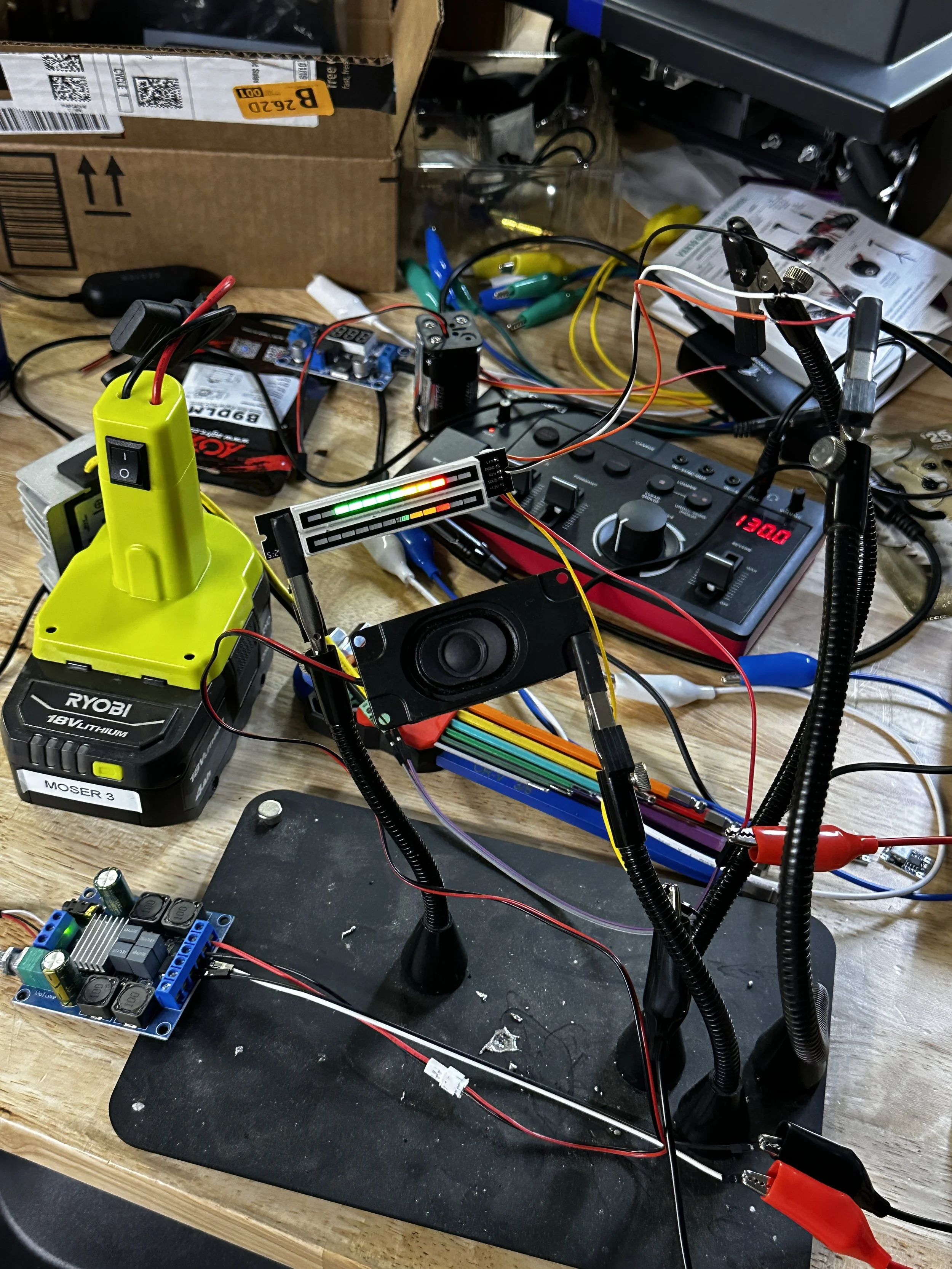

Voice systems using Roland E-4 Voice Tweaker (1/28)

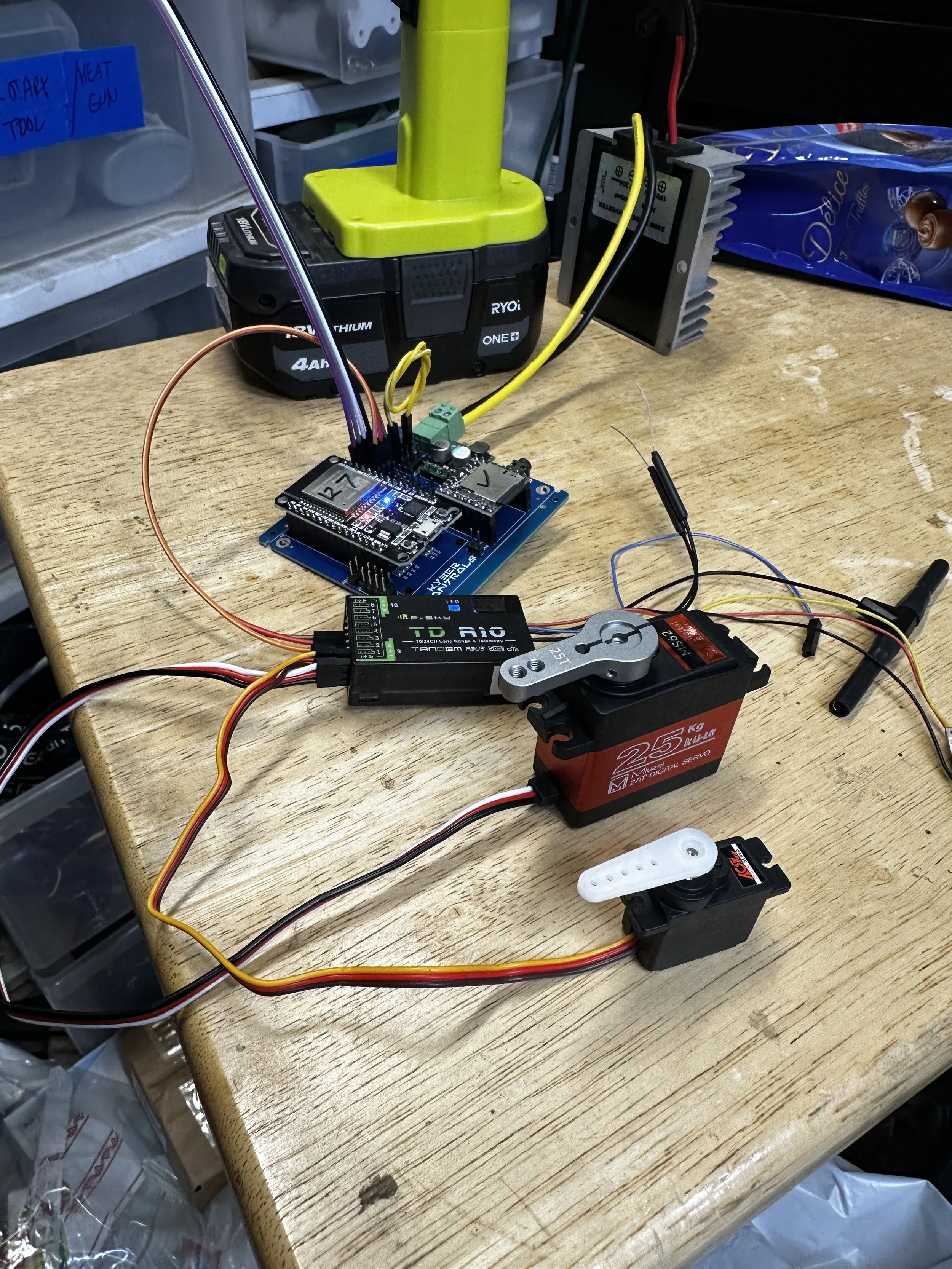

Transmitter (FrSky X20RS) and receiver (TD R10) configured and bind set. First movement test for servos (1/28)

17” car antenna test (2/2)
