TL-BX : Tool Box Droid
CURRENT PHASE : RESEARCH AND DEVELOPMENT
TL-BX will be an original droid based off of a DD-3 concept droid designed by Andrey Maximov for the 2016 ILM Art Challenge. I plan on making him a fully functioning tool box with deployable power tools and a full assortment of precision drivers and hex keys. He will drive using a Holonomic Drive. Still in the early R&D phase (my favorite phase). He will be complete by LA Comic Con 2026 at the latest.
13 Tool Groups
FrSky X20RS Transmitter
E-4 Voice Tweaker
Droid Stats
20” (508mm) - Sphere Diameter
96mm Omni Wheels (4x)
6.0ah Ryobi Battery (2x)
Kyber Control System

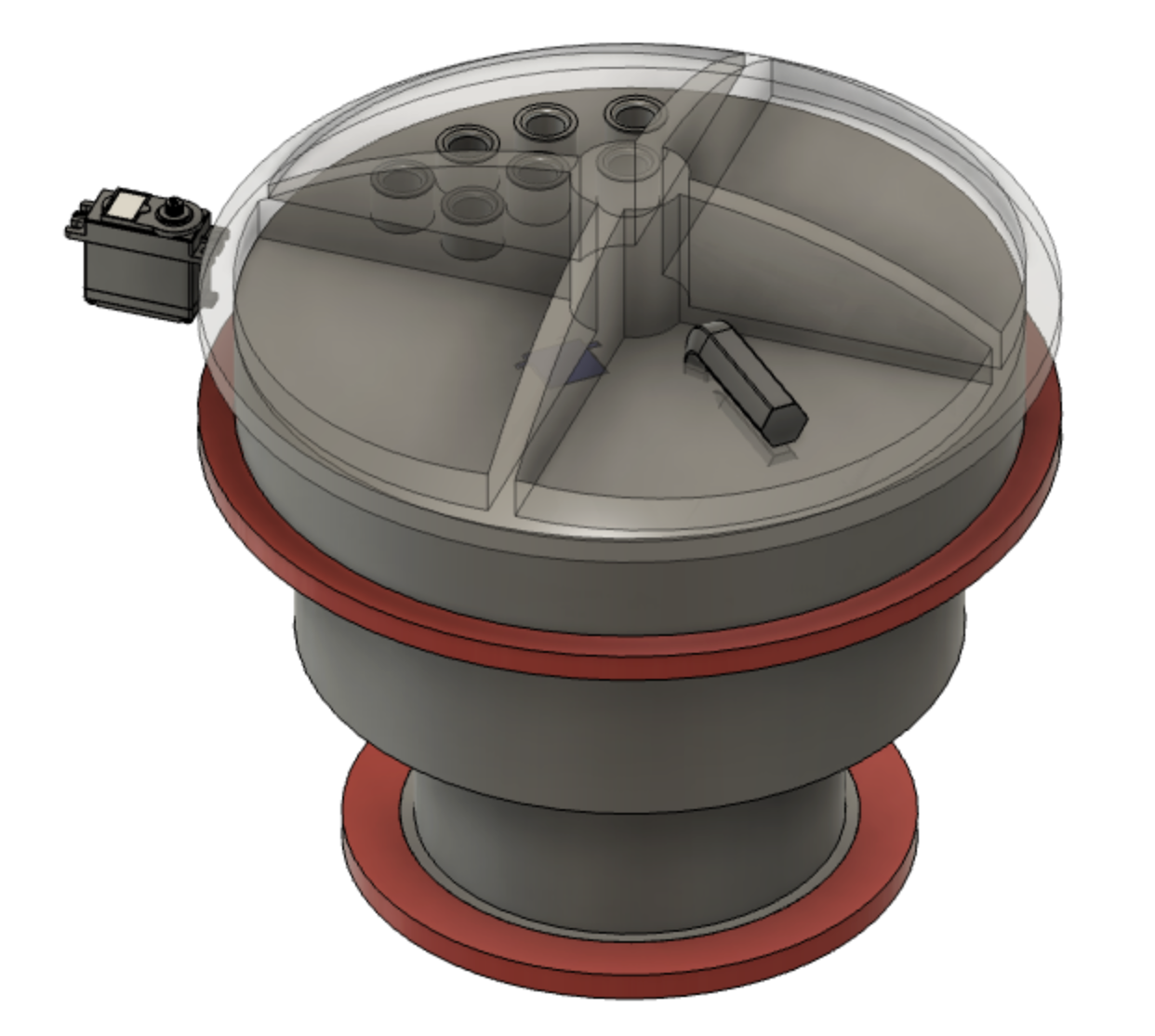

Tool Carousel rotates in core

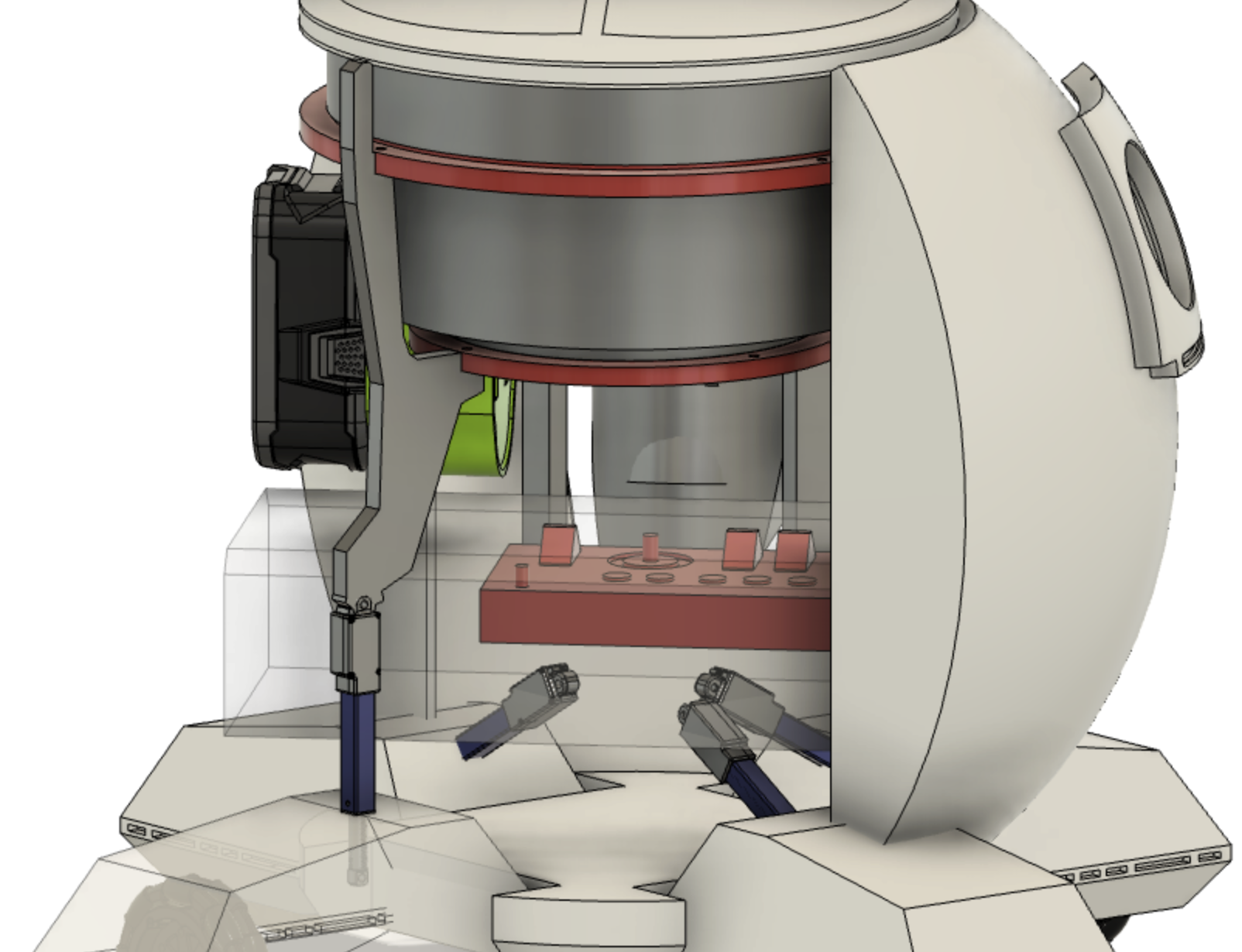

Side Pocket mechanism

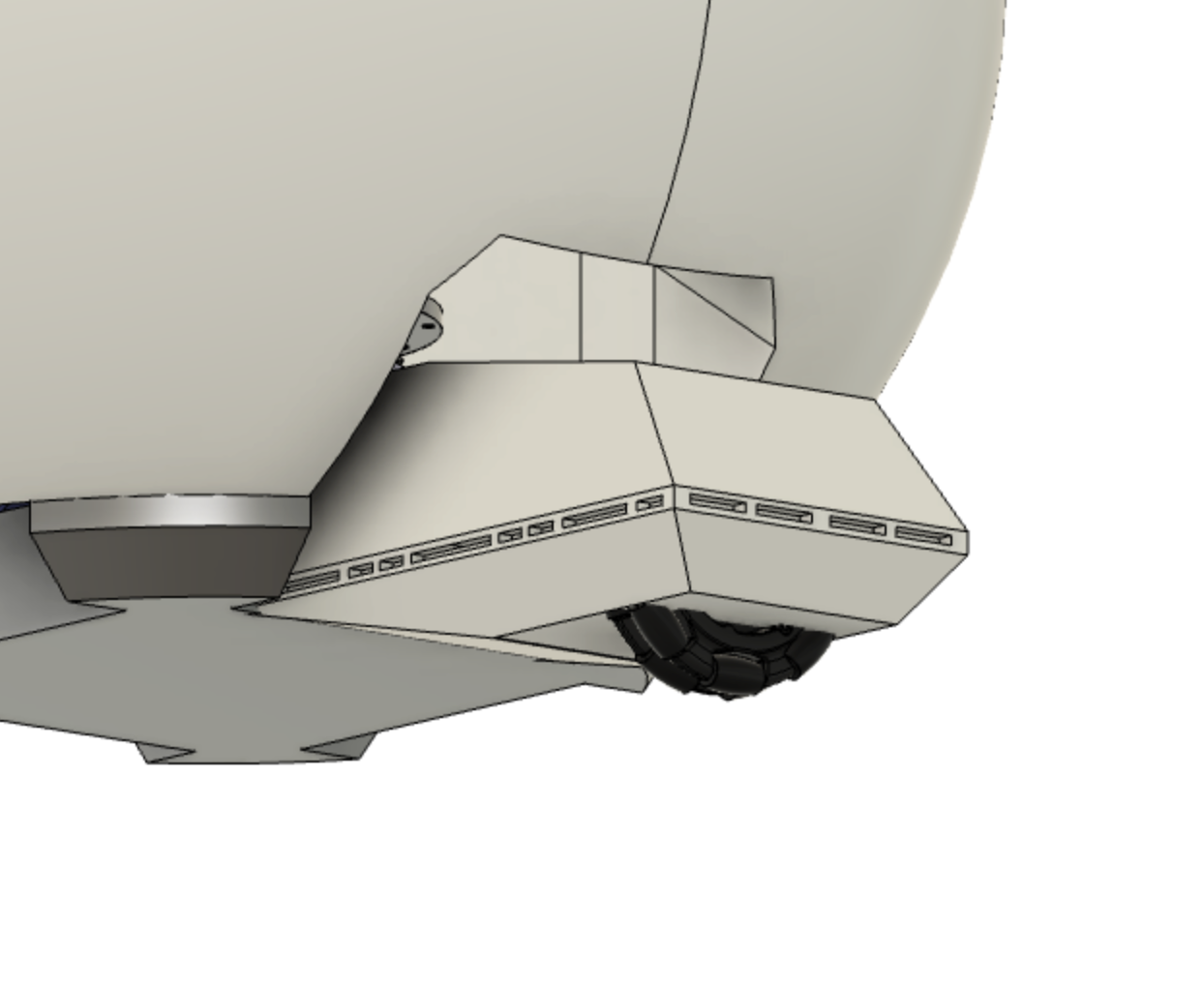

Toe lean: forward, back, left, right

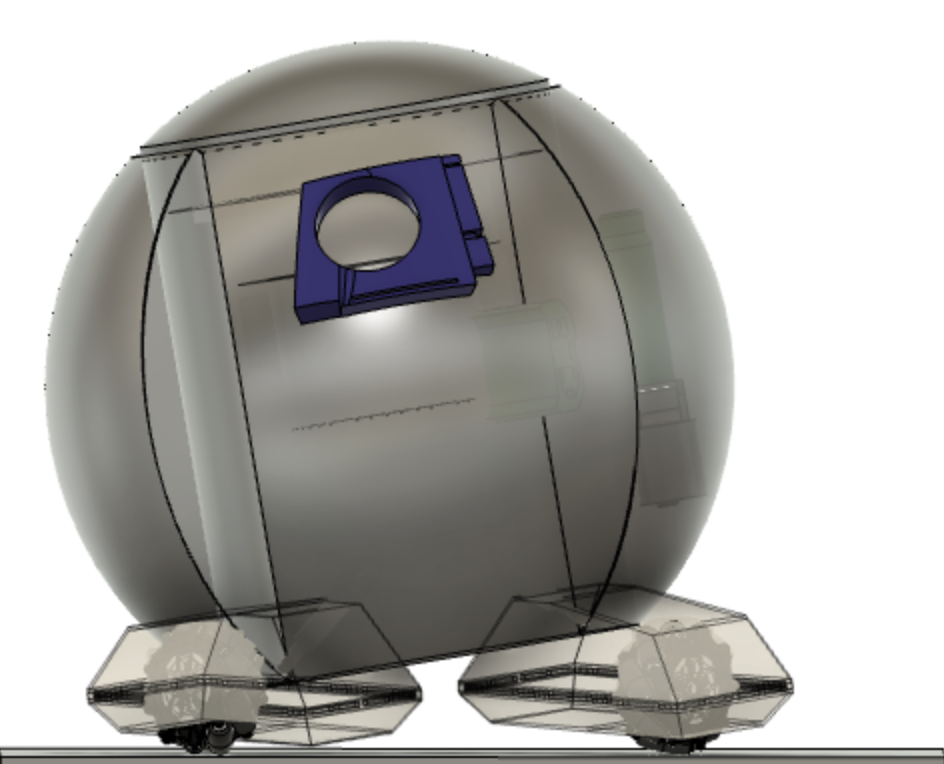

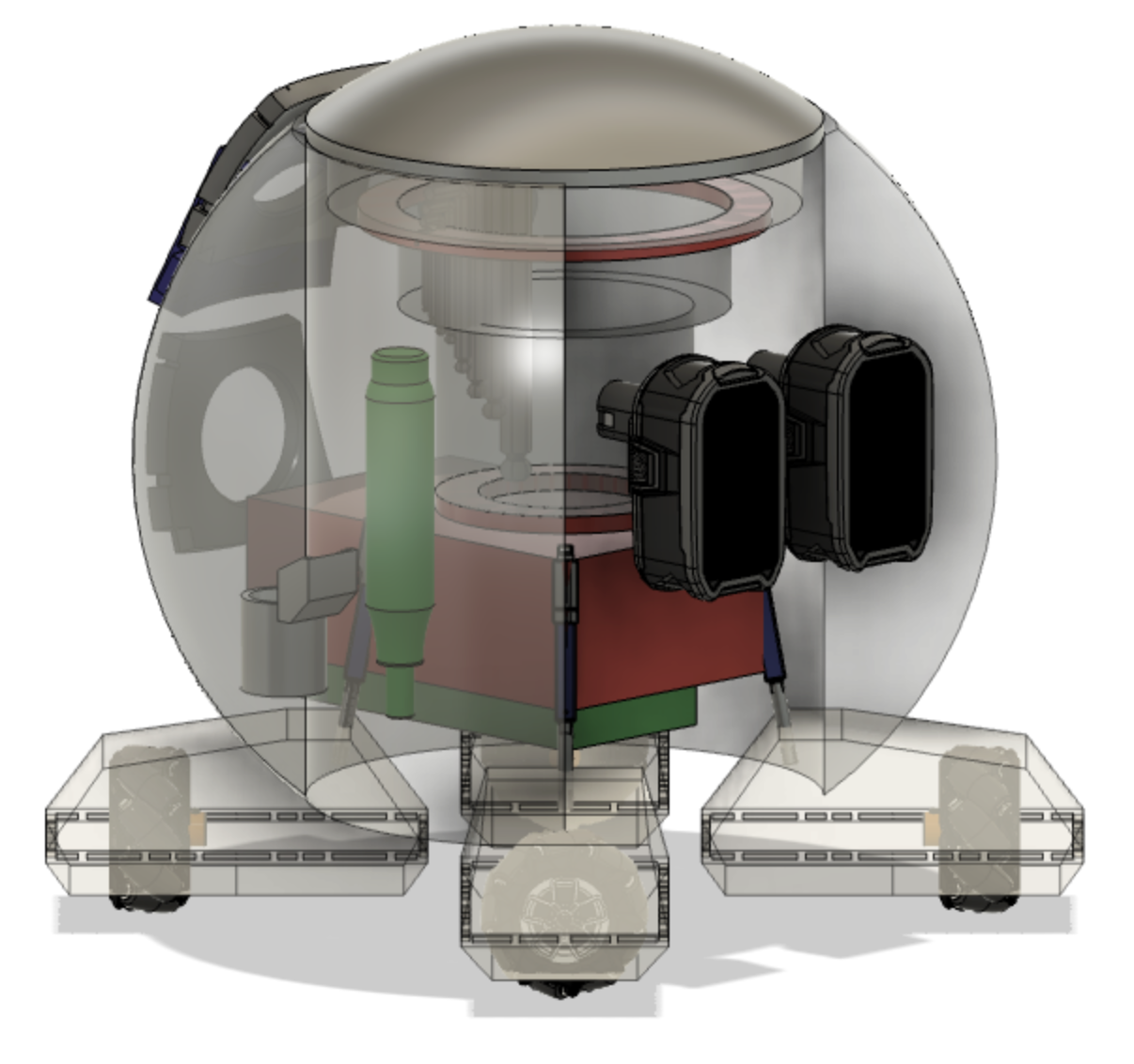

Internal core structure with void for Electronics Box

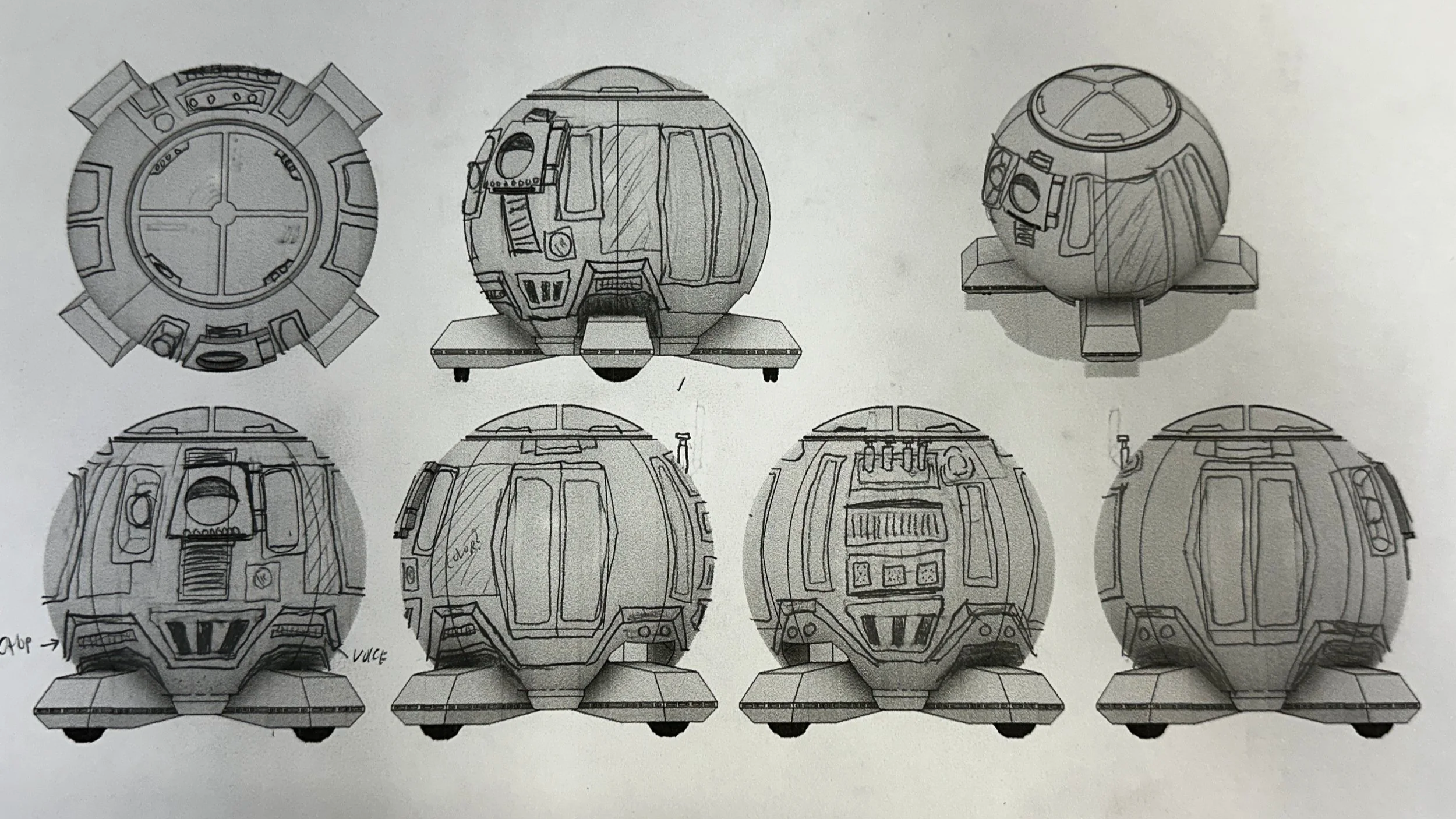

Panel lines and final detail sketches
Update 1/1/2026

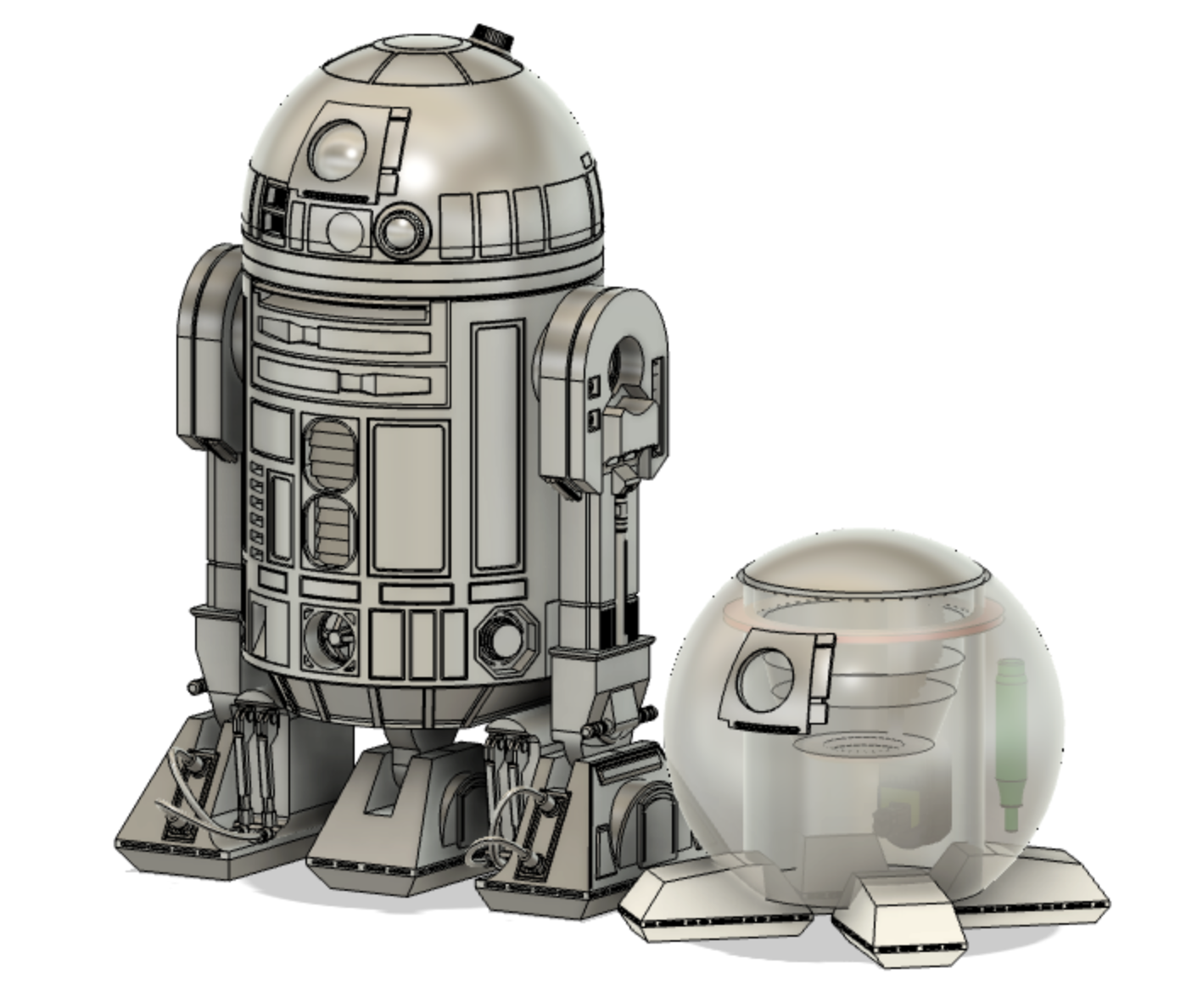

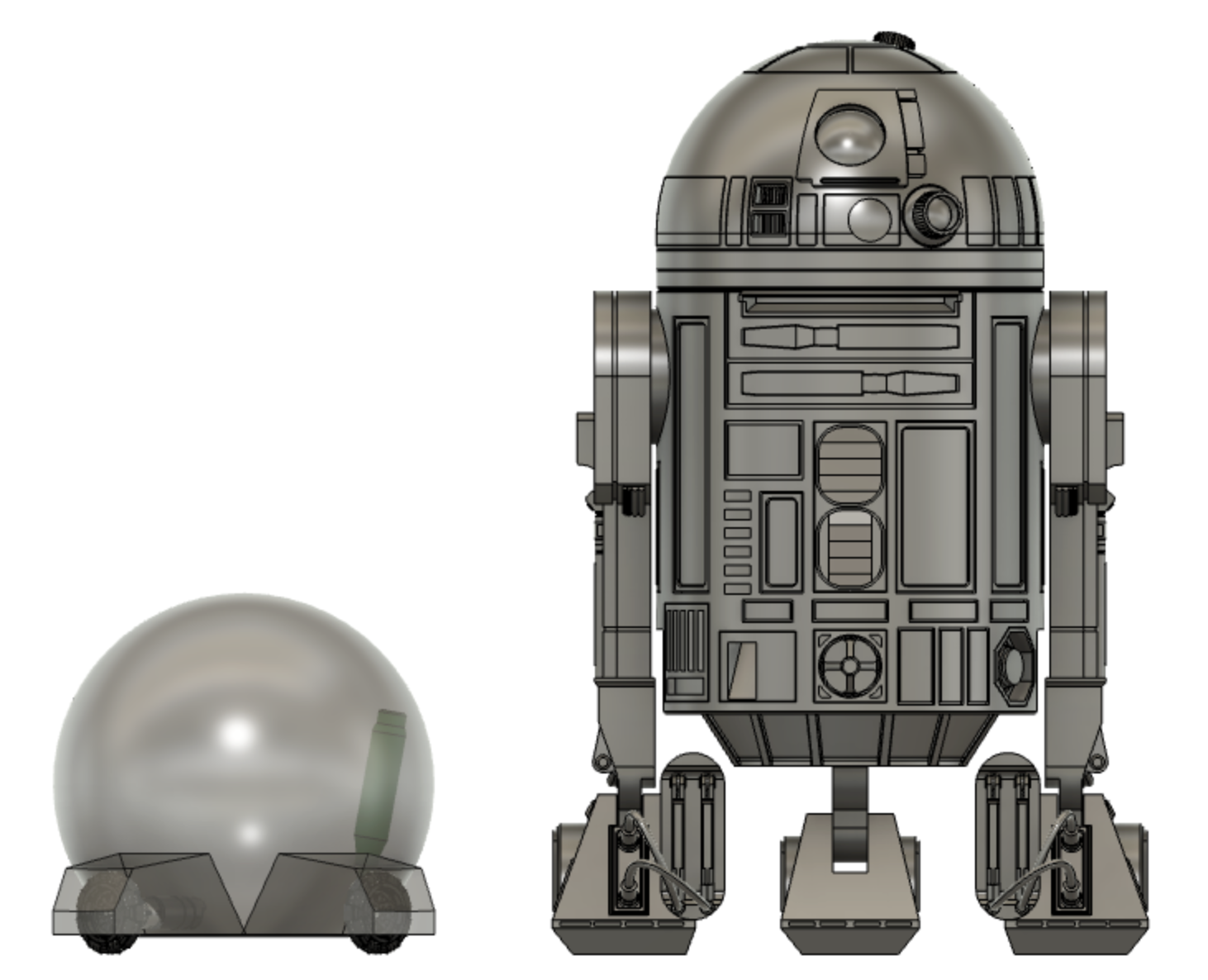

Scale estimate between TL-BX and R2-D2
Omni Wheels for all direction drive

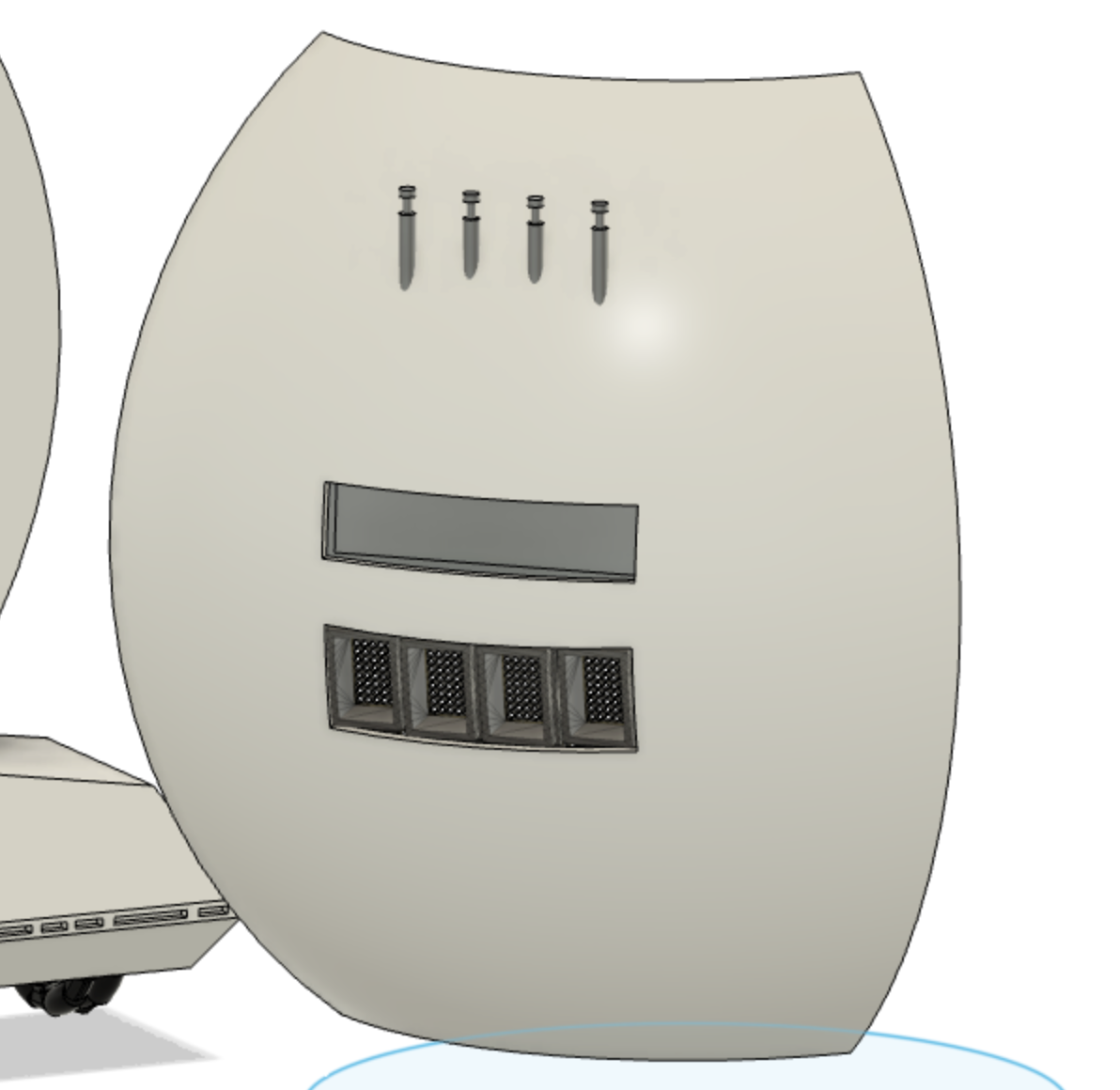

Rear panel with Spectrum Analyzer and 4 R2 Front Logic displays

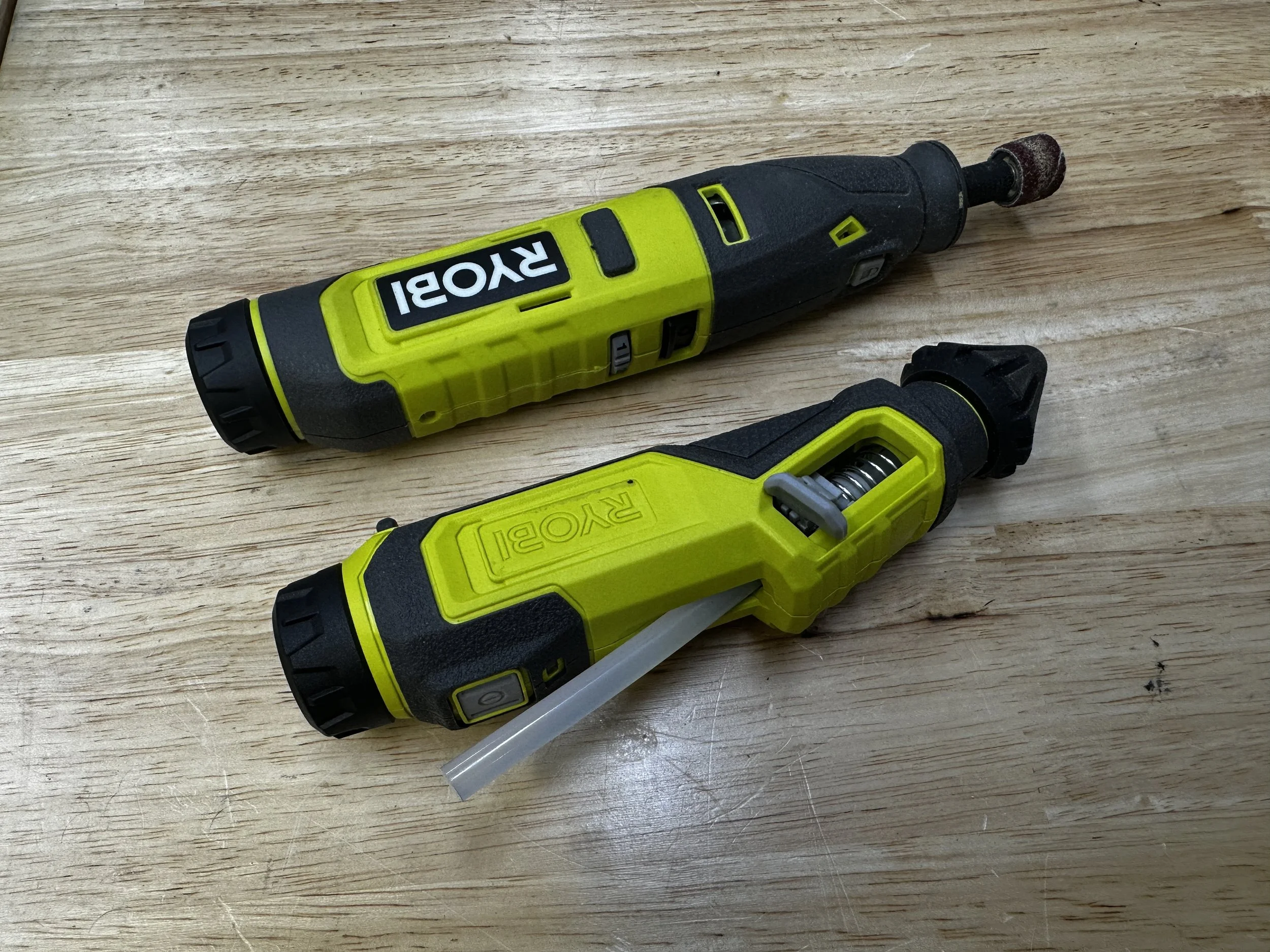

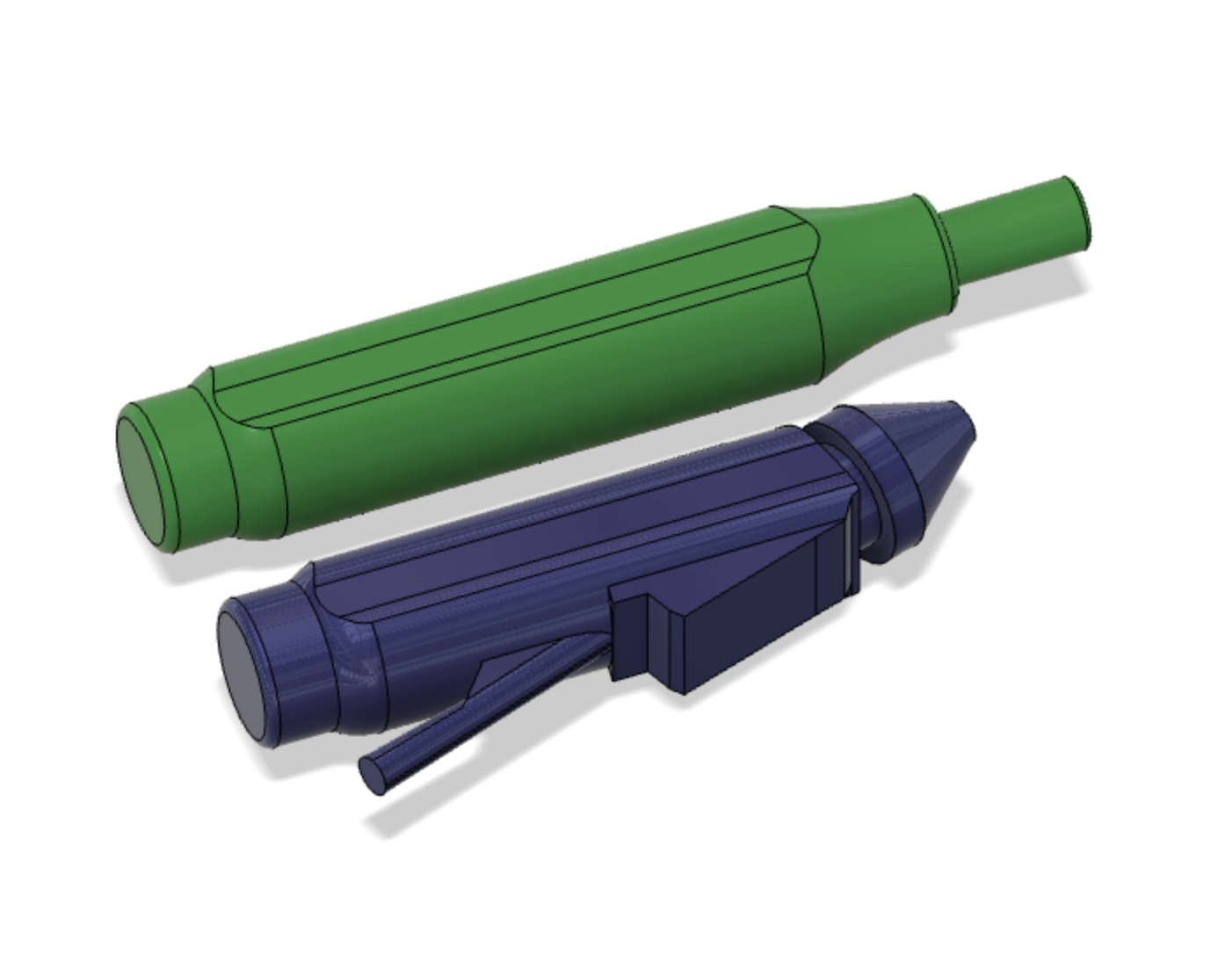

Scanned and designed Ryobi tools into Fusion 360
